The beam shown is subjected to bending moment M = 5 kNm. Determine a) Centroid of the cross-section (10 points] b) Momen
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The beam shown is subjected to bending moment M = 5 kNm. Determine a) Centroid of the cross-section (10 points] b) Momen

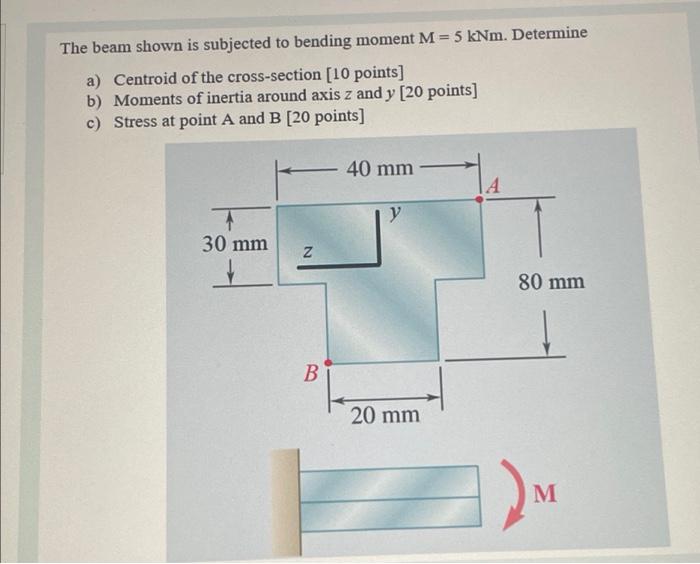

The beam shown is subjected to bending moment M = 5 kNm. Determine a) Centroid of the cross-section (10 points] b) Moments of inertia around axis z and y [20 points) c) Stress at point A and B [20 points] 40 mm A у 30 mm z 80 mm B 20 mm M
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
