The beam shown is subjected to bending moment M = 5 kNm. Determine a) Centroid of the cross-section (10 points) b) Momen

Post by answerhappygod »

The Beam Shown Is Subjected To Bending Moment M 5 Knm Determine A Centroid Of The Cross Section 10 Points B Momen 1
The Beam Shown Is Subjected To Bending Moment M 5 Knm Determine A Centroid Of The Cross Section 10 Points B Momen 1 (47.38 KiB) Viewed 15 times
can someone solve this, I just have 30 minutes

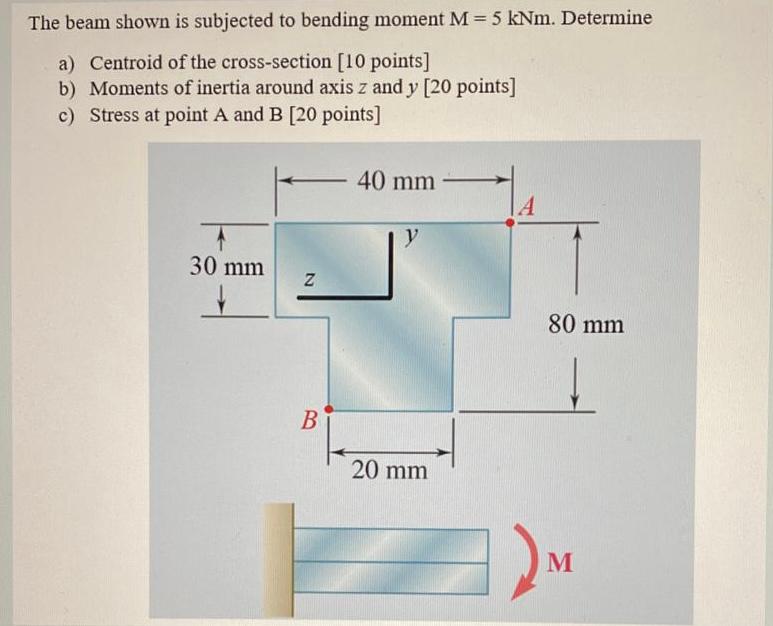

The beam shown is subjected to bending moment M = 5 kNm. Determine a) Centroid of the cross-section (10 points) b) Moments of inertia around axis z and y [20 points] c) Stress at point A and B [20 points] 40 mm A y 30 mm Z 80 mm B 20 mm M
