Please box final answer for each letter. Thank you.

[answerhappygod]

Please box final answer for each letter. Thank you.

Please Box Final Answer For Each Letter Thank You 1 (125.55 KiB) Viewed 16 times

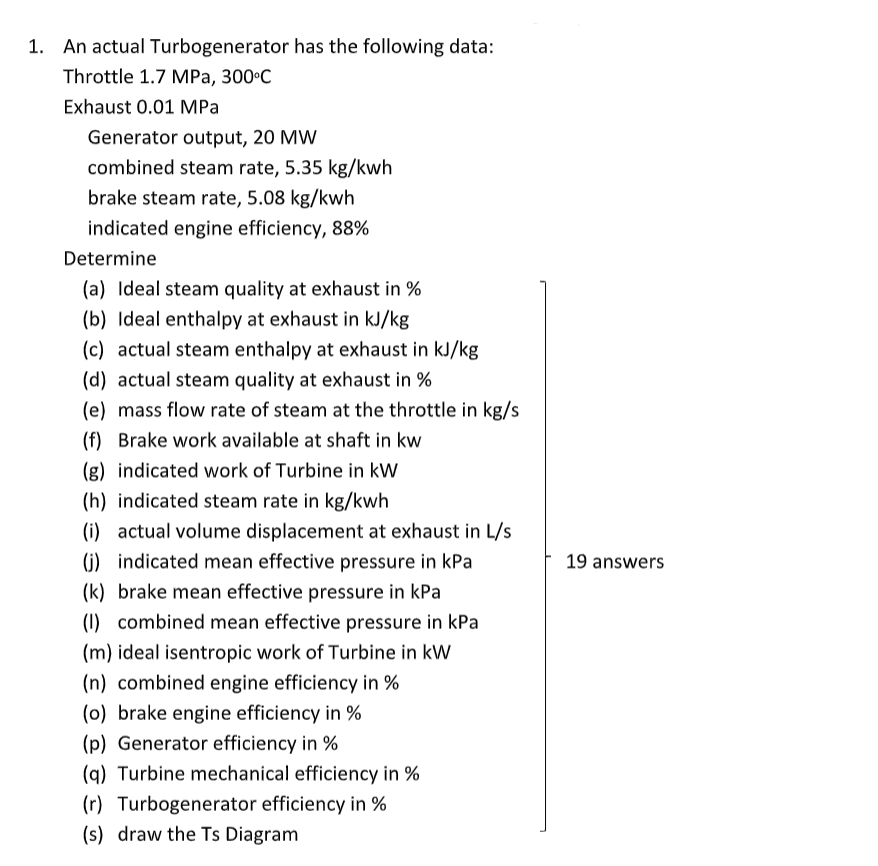

1. An actual Turbogenerator has the following data: Throttle 1.7 MPa, 300°C Exhaust 0.01 MPa Generator output, 20 MW combined steam rate, 5.35 kg/kwh brake steam rate, 5.08 kg/kwh indicated engine efficiency, 88% Determine (a) Ideal steam quality at exhaust in % (b) Ideal enthalpy at exhaust in kJ/kg (c) actual steam enthalpy at exhaust in kJ/kg (d) actual steam quality at exhaust in % (e) mass flow rate of steam at the throttle in kg/s (f) Brake work available at shaft in kw (g) indicated work of Turbine in kW (h) indicated steam rate in kg/kwh (i) actual volume displacement at exhaust in L/s (j) indicated mean effective pressure in kPa (k) brake mean effective pressure in kPa (1) combined mean effective pressure in kPa (m) ideal isentropic work of Turbine in kW (n) combined engine efficiency in % (o) brake engine efficiency in % (p) Generator efficiency in % (q) Turbine mechanical efficiency in % (r) Turbogenerator efficiency in % (s) draw the Ts Diagram 19 answers
