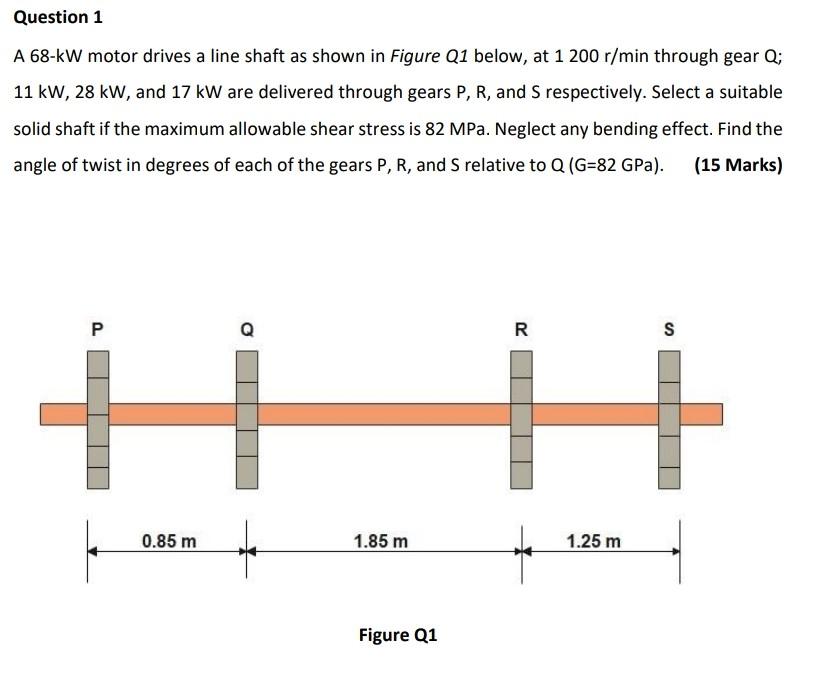

Question 1 A 68-kW motor drives a line shaft as shown in Figure Q1 below, at 1 200 r/min through gear Q; 11 kW, 28 kW, and 17 kW are delivered through gears P, R, and respectively. Select a suitable solid shaft if the maximum allowable shear stress is 82 MPa. Neglect any bending effect. Find the angle of twist in degrees of each of the gears P, R, and S relative to Q (G=82 GPa). (15 Marks) ס P R R S 0.85 m 1.85 m 1.25 m Figure Q1
