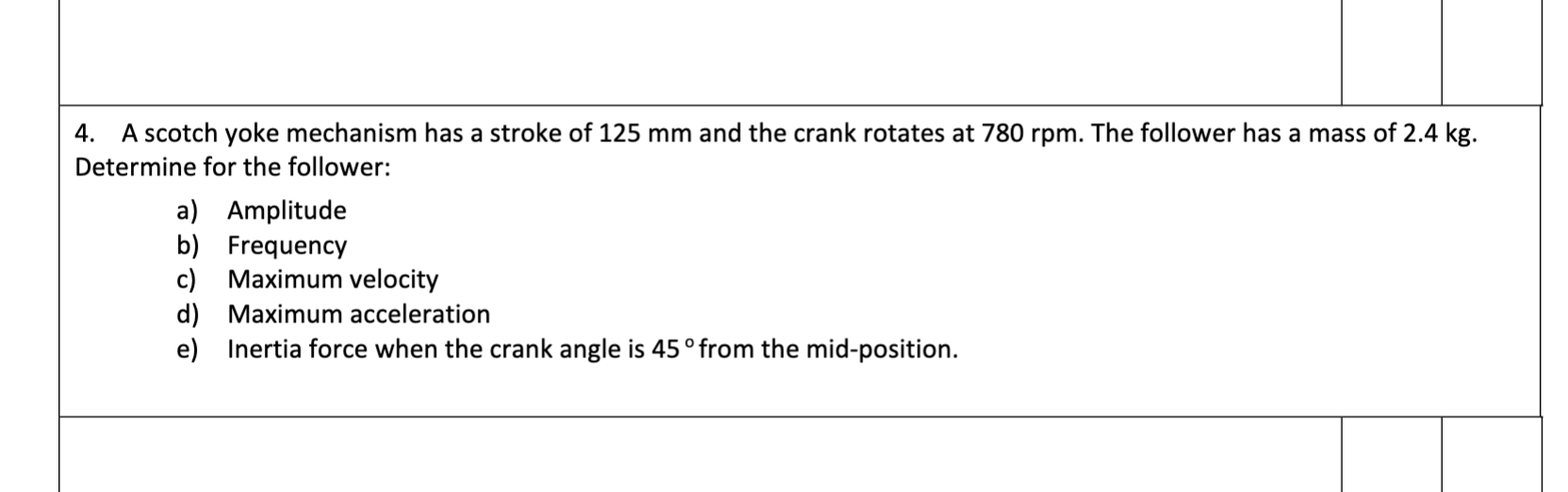

4. A scotch yoke mechanism has a stroke of 125 mm and the crank rotates at 780 rpm. The follower has a mass of 2.4 kg. Determine for the follower: a) Amplitude b) Frequency c) Maximum velocity d) Maximum acceleration e) Inertia force when the crank angle is 45° from the mid-position.
