Qlb) Referring to Figure QB1, two blocks of are attached to each other by a massless string that is wrapped around a fri

Post by answerhappygod »

Qlb Referring To Figure Qb1 Two Blocks Of Are Attached To Each Other By A Massless String That Is Wrapped Around A Fri 1
Qlb Referring To Figure Qb1 Two Blocks Of Are Attached To Each Other By A Massless String That Is Wrapped Around A Fri 1 (83.83 KiB) Viewed 18 times

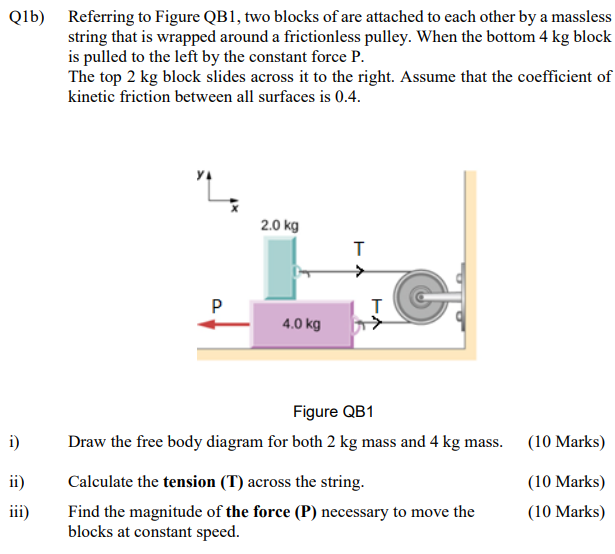

Qlb) Referring to Figure QB1, two blocks of are attached to each other by a massless string that is wrapped around a frictionless pulley. When the bottom 4 kg block is pulled to the left by the constant force P. The top 2 kg block slides across it to the right. Assume that the coefficient of kinetic friction between all surfaces is 0.4. L 2.0 kg T P T G 4.0 kg Figure QB1 Draw the free body diagram for both 2 kg mass and 4 kg mass. (10 Marks) i) ii) iii) Calculate the tension (T) across the string. Find the magnitude of the force (P) necessary to move the blocks at constant speed. (10 Marks) (10 Marks)
