The Resistors In The Operational Amplifier Circuit Shown Figure 1 1 Are Ri 4k R2 4k R3 3 Kn And R4 6 Kh The 1 (39.35 KiB) Viewed 45 times
The Resistors In The Operational Amplifier Circuit Shown Figure 1 1 Are Ri 4k R2 4k R3 3 Kn And R4 6 Kh The 2 (39.35 KiB) Viewed 45 times

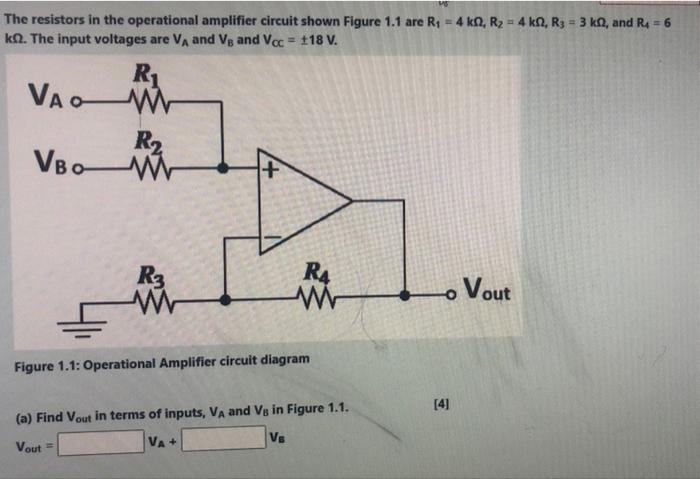

The resistors in the operational amplifier circuit shown Figure 1.1 are Ri - 4k, R2 = 4k, R3 = 3 kn, and R4 = 6 kh. The input voltages are VA and Vg and Voc = 118 V. R1 VAO W R2 VBOW R4 M - Vout Figure 1.1: Operational Amplifier circuit diagram [4] (a) Find Vout in terms of inputs, VA and Vg in Figure 1.1. Vout VA Vs
