Two solid steel shafts are connected by the gears shown. A torque of magnitude T=0.9 kNm is applied to shaft CD. Knowing

Post by answerhappygod »

Two Solid Steel Shafts Are Connected By The Gears Shown A Torque Of Magnitude T 0 9 Knm Is Applied To Shaft Cd Knowing 1
Two Solid Steel Shafts Are Connected By The Gears Shown A Torque Of Magnitude T 0 9 Knm Is Applied To Shaft Cd Knowing 1 (35.2 KiB) Viewed 15 times

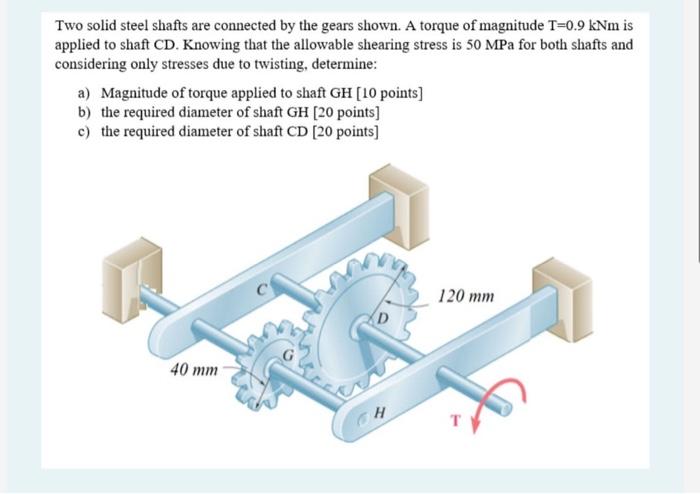

Two solid steel shafts are connected by the gears shown. A torque of magnitude T=0.9 kNm is applied to shaft CD. Knowing that the allowable shearing stress is 50 MPa for both shafts and considering only stresses due to twisting, determine: a) Magnitude of torque applied to shaft GH [10 points) b) the required diameter of shaft GH (20 points] c) the required diameter of shaft CD [20 points] 120 mm 40 mm
