Use appropriate Graph from Appendix to answer this question Stepped plate in Figure 1 is being pulled with a constant ax

[answerhappygod]

Use Appropriate Graph From Appendix To Answer This Question Stepped Plate In Figure 1 Is Being Pulled With A Constant Ax 1 (41.99 KiB) Viewed 18 times

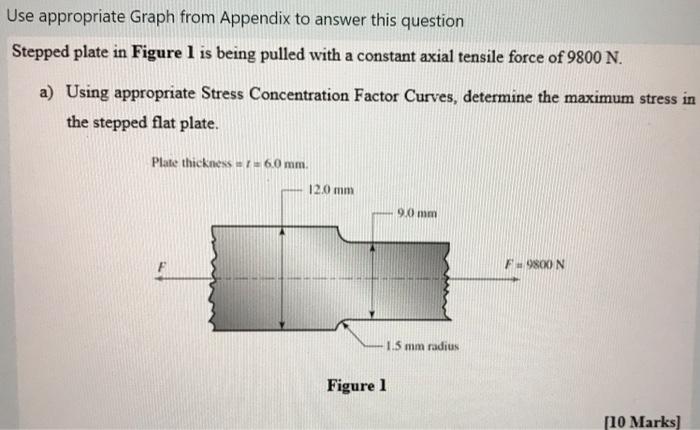

Use appropriate Graph from Appendix to answer this question Stepped plate in Figure 1 is being pulled with a constant axial tensile force of 9800 N. a) Using appropriate Stress Concentration Factor Curves, determine the maximum stress in the stepped flat plate. Plate thickness = r = 6.0 mm. 120 mm 9.0 mm F9800 N 1.5 mm radius Figure 1 10 Marks)
