Glued Wooden Beam calculation. Glued Wooden Beam is manufactured by gluing pieces of 100x20 mm planks together. Beam is

Post by answerhappygod »

Glued Wooden Beam Calculation Glued Wooden Beam Is Manufactured By Gluing Pieces Of 100x20 Mm Planks Together Beam Is 1
Glued Wooden Beam Calculation Glued Wooden Beam Is Manufactured By Gluing Pieces Of 100x20 Mm Planks Together Beam Is 1 (38.21 KiB) Viewed 13 times

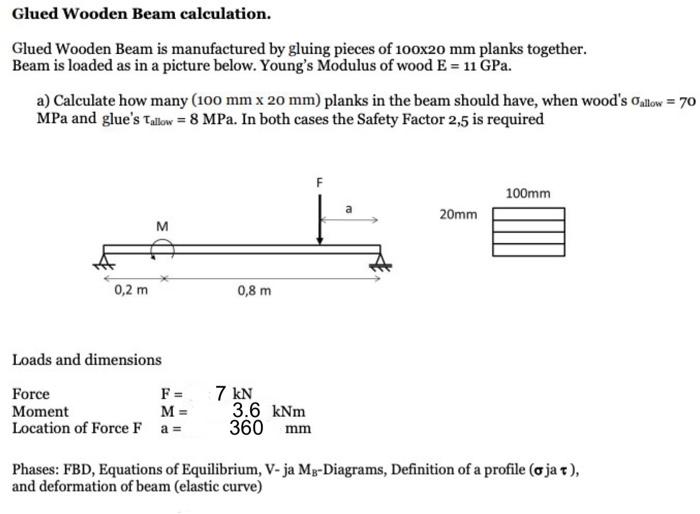

Glued Wooden Beam calculation. Glued Wooden Beam is manufactured by gluing pieces of 100x20 mm planks together. Beam is loaded as in a picture below. Young's Modulus of wood E = 11 GPa. a) Calculate how many (100 mm x 20 mm) planks in the beam should have, when wood's Callow = 70 MPa and glue's Tallow = 8 MPa. In both cases the Safety Factor 2,5 is required 100mm 20mm M 0,2 m 0,8 m Loads and dimensions F= Force Moment M= Location of Force F a = 7 kN 3.6 kNm 360 mm Phases: FBD, Equations of Equilibrium, V-ja Mg-Diagrams, Definition of a profile (o jat), and deformation of beam (elastic curve)
