For the belt drive shown in the figure: N1 = 150 rpm, Callowable = 2 MPa, p = 980 kg/m3, u = 0.3 and belt width b=45 mm.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

For the belt drive shown in the figure: N1 = 150 rpm, Callowable = 2 MPa, p = 980 kg/m3, u = 0.3 and belt width b=45 mm.

Post by answerhappygod »

For The Belt Drive Shown In The Figure N1 150 Rpm Callowable 2 Mpa P 980 Kg M3 U 0 3 And Belt Width B 45 Mm 1
For The Belt Drive Shown In The Figure N1 150 Rpm Callowable 2 Mpa P 980 Kg M3 U 0 3 And Belt Width B 45 Mm 1 (39.04 KiB) Viewed 24 times

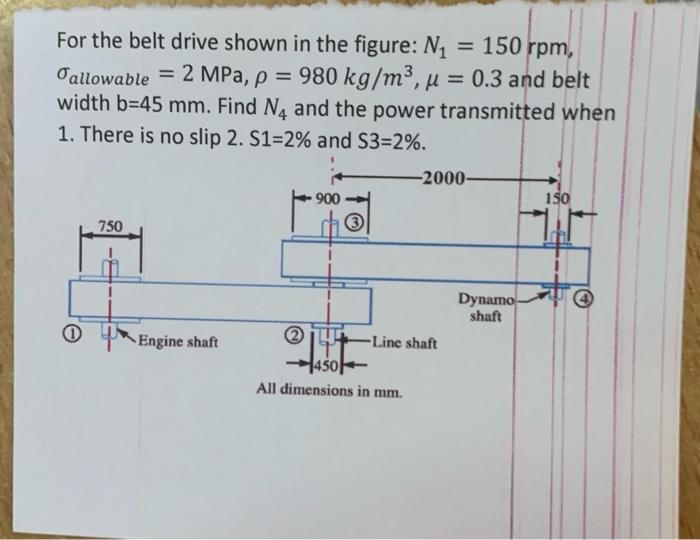

For the belt drive shown in the figure: N1 = 150 rpm, Callowable = 2 MPa, p = 980 kg/m3, u = 0.3 and belt width b=45 mm. Find N4 and the power transmitted when 1. There is no slip 2. S1=2% and S3=2%. 2 -2000- 900 150 750 Dynamo shaft 0 Engine shaft -Line shaft 450 All dimensions in mm.
