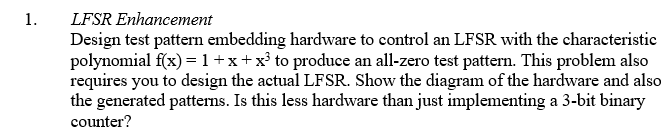

1. LFSR Enhancement
Design test pattern embedding hardware to control an LFSR with the
characteristic polynomial f(x) = 1 + x + x3 to produce an all-zero
test pattern. This problem also requires you to design the actual
LFSR. Show the diagram of the hardware and also the generated
patterns. Is this less hardware than just implementing a 3-bit
binary counter?
1 Lfsr Enhancement Design Test Pattern Embedding Hardware To Control An Lfsr With The Characteristic Polynomial F X 1 (14.17 KiB) Viewed 22 times
1. LFSR Enhancement Design test pattern embedding hardware to control an LFSR with the characteristic polynomial f(x) = 1 +x+x3 to produce an all-zero test pattern. This problem also requires you to design the actual LFSR. Show the diagram of the hardware and also the generated patterns. Is this less hardware than just implementing a 3-bit binary counter?
