32. For the sequential circuit below, if signals A,B and C are set to 0,0 and 0 respectively, how many stuck at 0 faults

[answerhappygod]

32 For The Sequential Circuit Below If Signals A B And C Are Set To 0 0 And 0 Respectively How Many Stuck At 0 Faults 1 (79.56 KiB) Viewed 21 times

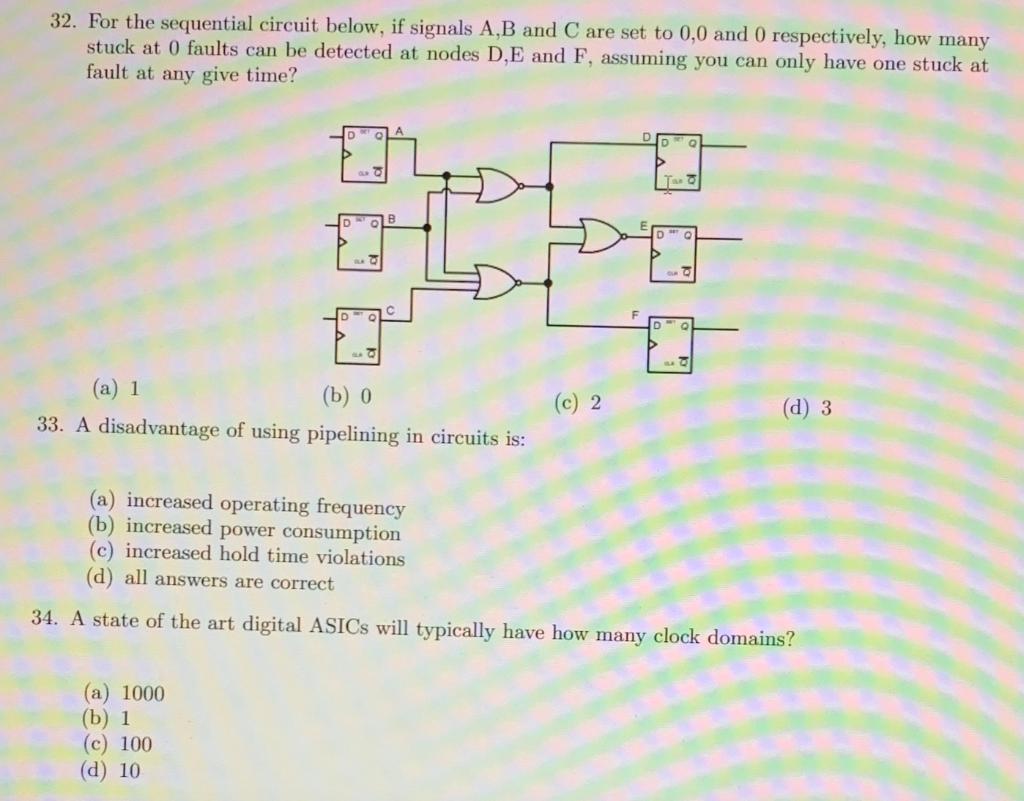

32. For the sequential circuit below, if signals A,B and C are set to 0,0 and 0 respectively, how many stuck at 0 faults can be detected at nodes D.E and F, assuming you can only have one stuck at fault at any give time? Tuo (a) 1 (b) 0 33. A disadvantage of using pipelining in circuits is: (c) 2 (d) 3 (a) increased operating frequency (b) increased power consumption (c) increased hold time violations (d) all answers are correct 34. A state of the art digital ASICs will typically have how many clock domains? (a) 1000 (b) 1 (c) 100 (d) 10
