1) Figure below shows a circuit using germanium and silicon diodes. Based on the figure calculate the value of currents

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

1) Figure below shows a circuit using germanium and silicon diodes. Based on the figure calculate the value of currents

Post by answerhappygod »

1 Figure Below Shows A Circuit Using Germanium And Silicon Diodes Based On The Figure Calculate The Value Of Currents 1
1 Figure Below Shows A Circuit Using Germanium And Silicon Diodes Based On The Figure Calculate The Value Of Currents 1 (47.97 KiB) Viewed 17 times

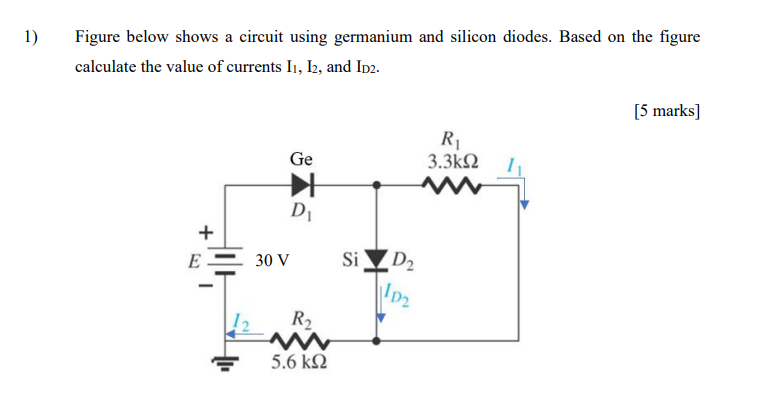

1) Figure below shows a circuit using germanium and silicon diodes. Based on the figure calculate the value of currents I1, I2, and Ip2. [5 marks] Ge R 3.3kΩ D + E 30 V Si D2 102 R2 5.6 k 2
