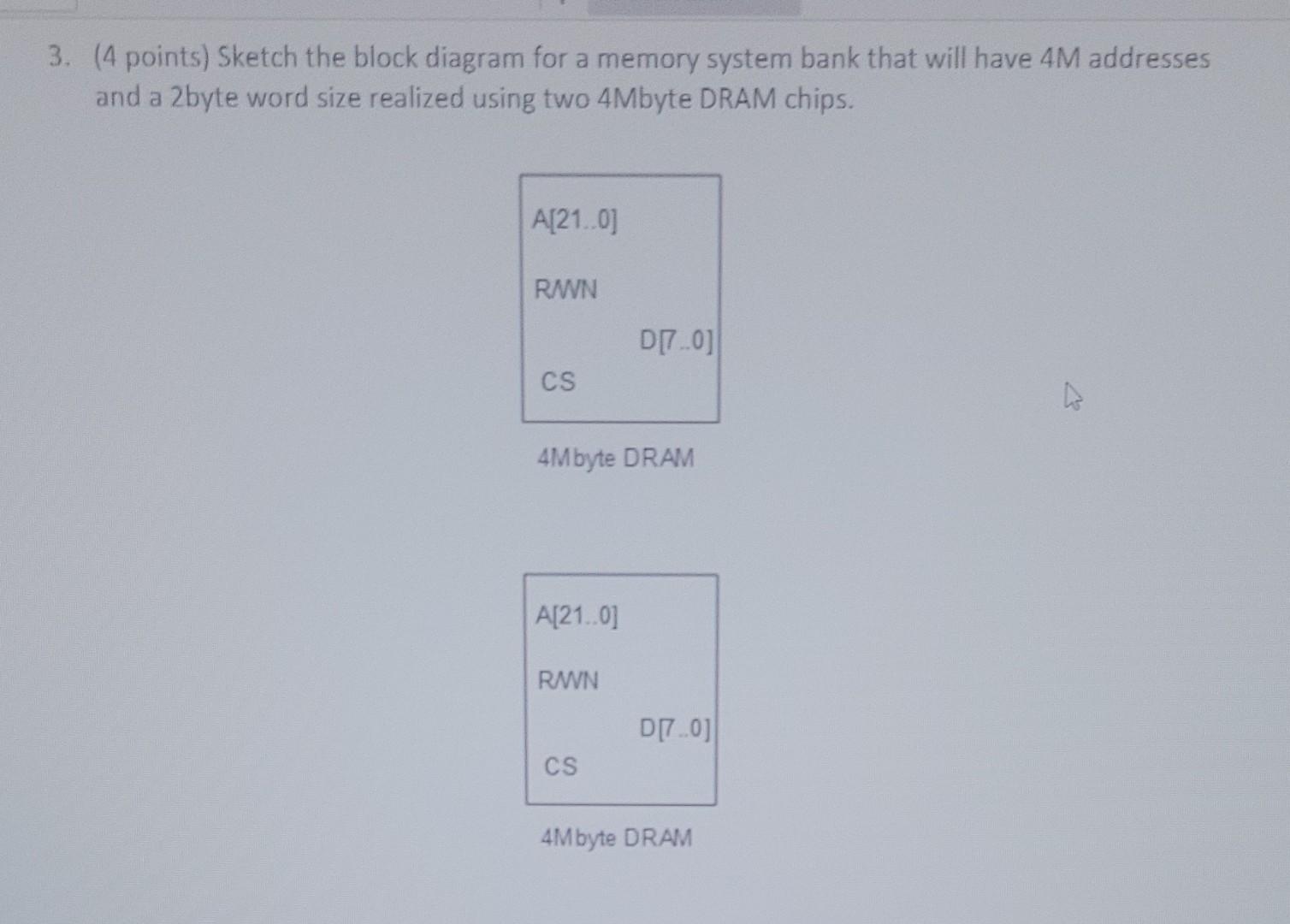

3. (4 points) Sketch the block diagram for a memory system bank that will have 4M addresses and a 2byte word size realized using two 4Mbyte DRAM chips. a A[21..] RNUN D[70] CS 4Mbyte DRAM A[21..01 RAWN D[70] CS 4Mbyte DRAM

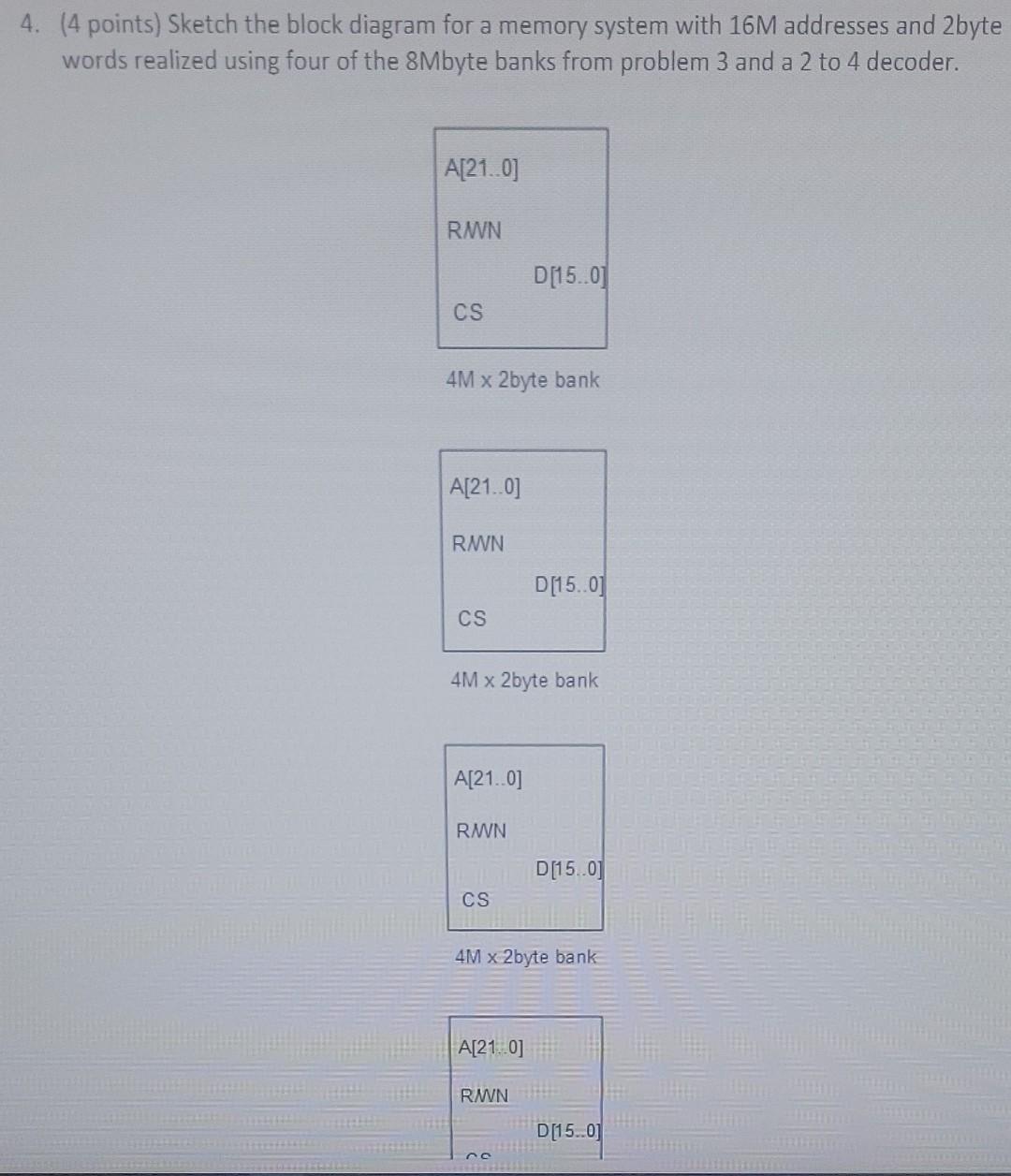

4. (4 points) Sketch the block diagram for a memory system with 16M addresses and 2byte words realized using four of the 8Mbyte banks from problem 3 and a 2 to 4 decoder. A[21.0] RNUN D[15.0] CS 4M x 2byte bank A[21..0] RNUN D[15.0] CS 4M x 2byte bank A[21..0] RMN D[15.0] CS 4M x 2byte bank A[210] RMN D[15.0)
