[05] For the circuit shown on fig.5, build the simulation model and explan the function of each element. m LAMP LOAD 12V

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

[05] For the circuit shown on fig.5, build the simulation model and explan the function of each element. m LAMP LOAD 12V

Post by answerhappygod »

05 For The Circuit Shown On Fig 5 Build The Simulation Model And Explan The Function Of Each Element M Lamp Load 12v 1
05 For The Circuit Shown On Fig 5 Build The Simulation Model And Explan The Function Of Each Element M Lamp Load 12v 1 (62.34 KiB) Viewed 21 times

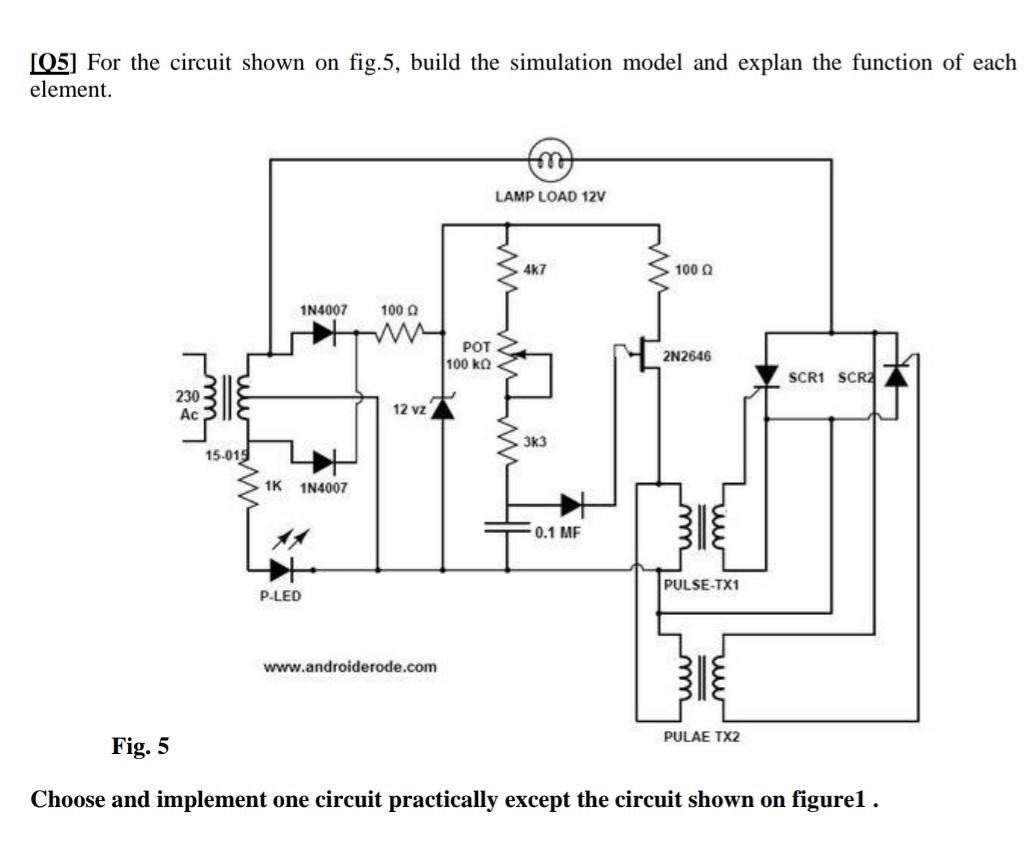

[05] For the circuit shown on fig.5, build the simulation model and explan the function of each element. m LAMP LOAD 12V 467 100 1N4007 1000 POT 100 kg 2N2646 SCR1 SCR 230 Ac ww 12 vz Зk3 15-019 1K 1N4007 0.1 MF w M PULSE-TX1 P-LED www.androiderode.com I PULAE TX2 Fig. 5 Choose and implement one circuit practically except the circuit shown on figurel.
