16. For the following clock gating circuit with TPD 50ps for the AND gate with the clock input and flip-flop parameters
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
16. For the following clock gating circuit with TPD 50ps for the AND gate with the clock input and flip-flop parameters

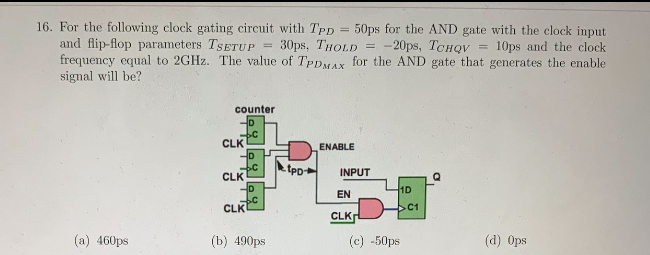

16. For the following clock gating circuit with TPD 50ps for the AND gate with the clock input and flip-flop parameters TSETUP 30ps, THOLD - 20ps, TCHOV 10ps and the clock frequency equal to 2GHz. The value of TpDmax for the AND gate that generates the enable signal will be? counter bc CLK ENABLE bc CLK tpd INPUT EN CLK 1D > C1 CLK (a) 460ps (b) 490ps (C) -50ps (d) Ops
