- 7. For the following clock gating circuit with TPD 50ps for the AND gate with the clock input and flip-flop parameters
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
- 7. For the following clock gating circuit with TPD 50ps for the AND gate with the clock input and flip-flop parameters

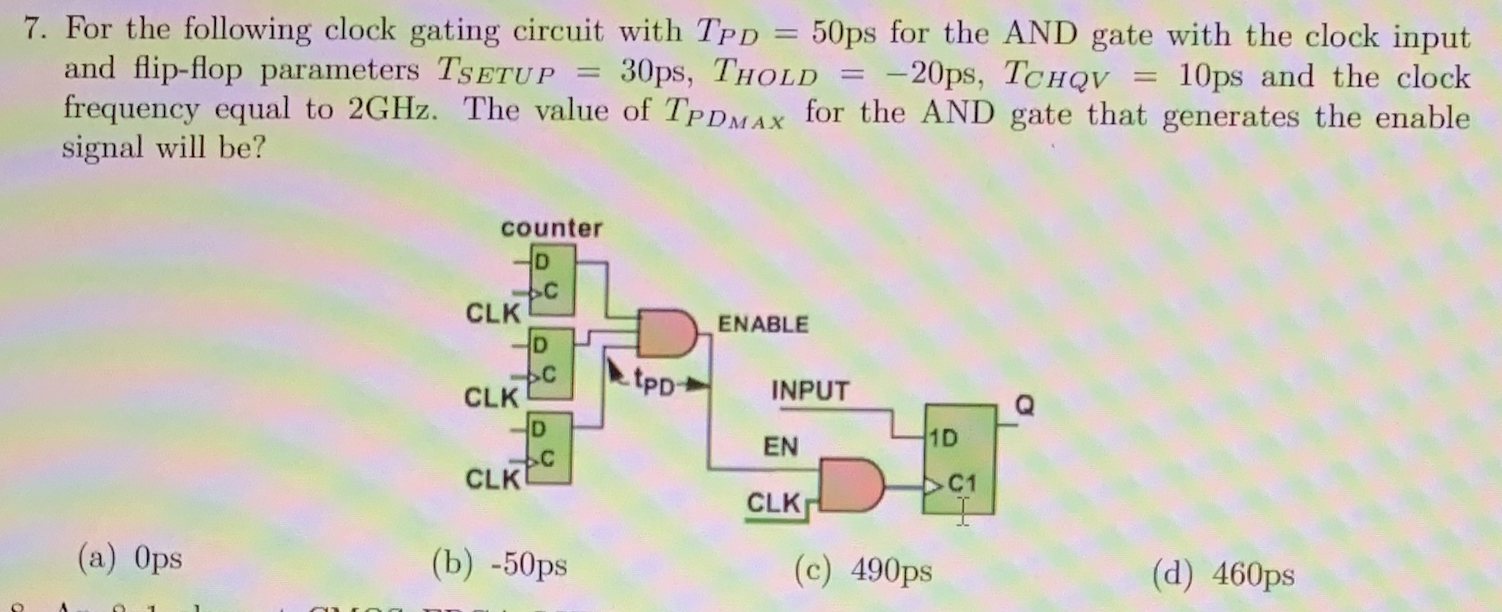

- 7. For the following clock gating circuit with TPD 50ps for the AND gate with the clock input and flip-flop parameters TSETUP 30ps, Thold = –20ps, TCHQV 10ps and the clock frequency equal to 2GHz. The value of TPDMAX for the AND gate that generates the enable signal will be? counter D ФС CLK ENABLE tpD+ CLK INPUT EN 1D С CLK C1 CLK (a) Ops (b) -50ps (c) 490ps (d) 460ps
