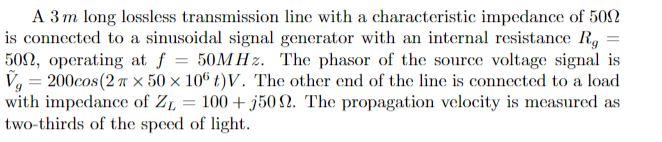

A 3 m long lossless transmission line with a characteristic impedance of 5012 is connected to a sinusoidal signal generator with an internal resistance Rg 5012, operating at f = 50MHz. The phasor of the source voltage signal is Ď, = 200cos(2 x 50 x 106 t)V. The other end of the line is connected to a load with impedance of ZL = 100+ j501. The propagation velocity is measured as two-thirds of the speed of light.
Find the voltage and current at the load in terms of the phasors V, and IL
