19. which output waveform is for the circuit below (note: you can assume no clock skew on the CLK signal and the gate co
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
19. which output waveform is for the circuit below (note: you can assume no clock skew on the CLK signal and the gate co

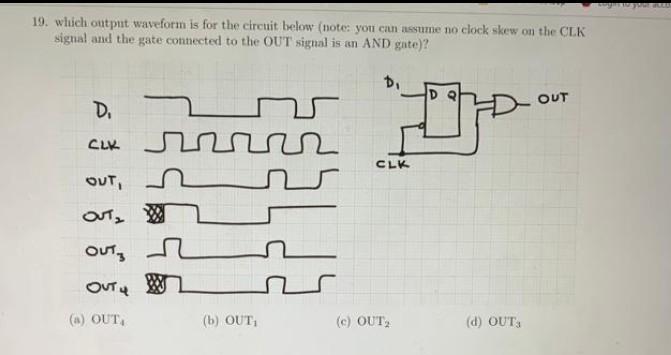

19. which output waveform is for the circuit below (note: you can assume no clock skew on the CLK signal and the gate connected to the OUT signal is an AND gate)? Di OUT D. CLK பபபப 22 CLK OUT at Ourg OUT 4 s (a) OUT, (b) OUT (C) OUT, (d) OUT
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
