1. Answer the following questions for the circuit in Figure 1. a. Input u(t) = vg, output y(t) = vo and state variables

[answerhappygod]

1 Answer The Following Questions For The Circuit In Figure 1 A Input U T Vg Output Y T Vo And State Variables 1 (123.51 KiB) Viewed 18 times

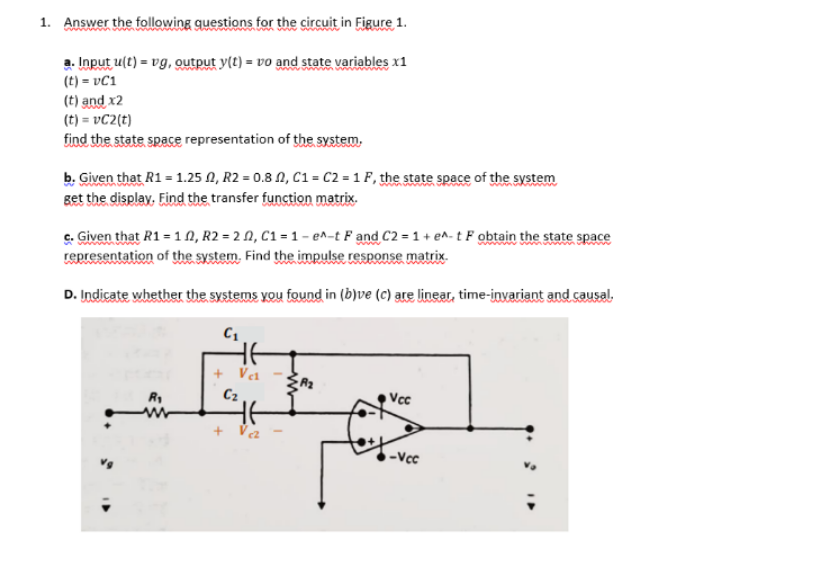

1. Answer the following questions for the circuit in Figure 1. a. Input u(t) = vg, output y(t) = vo and state variables x1 (t) = VC1 (t) and x2 (t) = vc2(t) find the state space representation of the system, b. Given that R1 = 1.250, R2 = 0.8.0, C1 = C2 = 1 F, the state space of the system Bet the display, Find the transfer function matrix. S. Given that R1 = 1 , R2 = 29, C1 = 1 -en-t F and C2 = 1 + en- t F obtain the state space representation of the system. Find the impulse response matrix D. Indicate whether the systems you found in (b)ve (c) are linear, time-invariant and causal. C1 + Va C2 R2 R1 VCC + -Vec
