Q3 (20 points) (a) Determine the subnet prefix and subnet mask for ECE subnet if ECE subnet has IP addresses from 143.89

[answerhappygod]

Q3 20 Points A Determine The Subnet Prefix And Subnet Mask For Ece Subnet If Ece Subnet Has Ip Addresses From 143 89 1 (178.54 KiB) Viewed 20 times

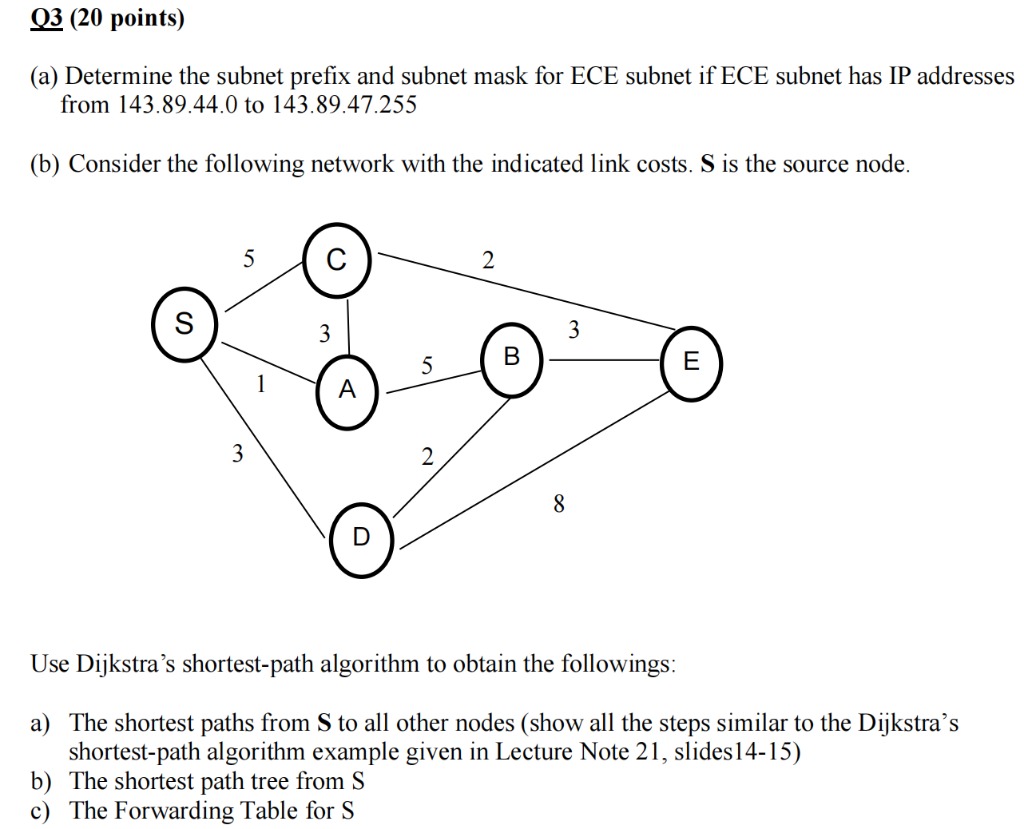

Q3 (20 points) (a) Determine the subnet prefix and subnet mask for ECE subnet if ECE subnet has IP addresses from 143.89.44.0 to 143.89.47.255 (b) Consider the following network with the indicated link costs. S is the source node. 5 2 S 3 3 5 B E A 3 8 Use Dijkstra's shortest-path algorithm to obtain the followings: a) The shortest paths from S to all other nodes (show all the steps similar to the Dijkstra's shortest-path algorithm example given in Lecture Note 21, slides 14-15) b) The shortest path tree from S c) The Forwarding Table for S
