4. Consider the circuit shown below. The transistor parameters are VEB=0.7V, B= 80, VEC(sat) = 0.2V a) Find IBQ : Icą b)
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
4. Consider the circuit shown below. The transistor parameters are VEB=0.7V, B= 80, VEC(sat) = 0.2V a) Find IBQ : Icą b)

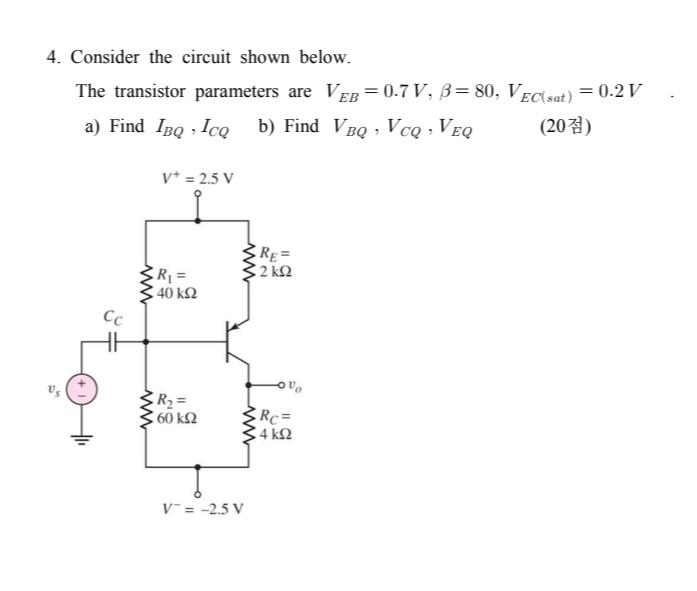

4. Consider the circuit shown below. The transistor parameters are VEB=0.7V, B= 80, VEC(sat) = 0.2V a) Find IBQ : Icą b) Find VBQ , VcQ, VEQ (20점) V* = 2.5 V www RE= 2 ΚΩ Ri= 40 KS2 w Сс R2 = 60 k22 w RC= 4k92 V = -2.5 V
