Figure 4 shows a block diagram of a breaking system of steering car where y(s) and R(s) represents the output and input

[answerhappygod]

Figure 4 Shows A Block Diagram Of A Breaking System Of Steering Car Where Y S And R S Represents The Output And Input 1 (62.92 KiB) Viewed 26 times

PRINCIPLE OF CONTROL SYSTEM

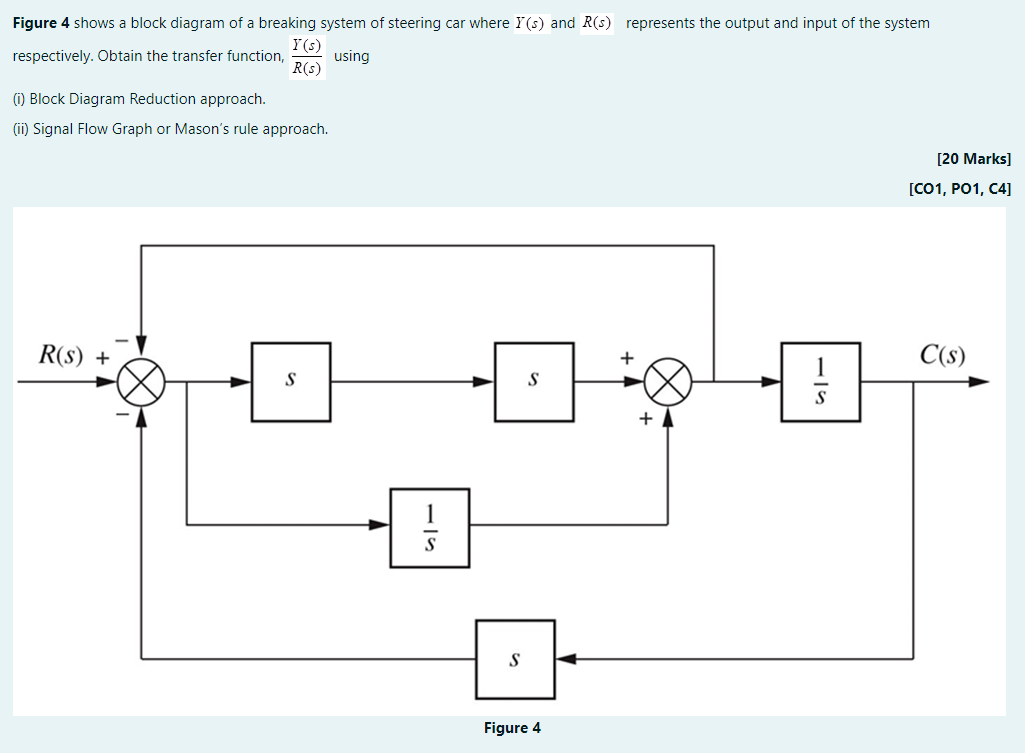

Figure 4 shows a block diagram of a breaking system of steering car where y(s) and R(s) represents the output and input of the system Y(s) respectively. Obtain the transfer function, using R(S) () Block Diagram Reduction approach. () Signal Flow Graph or Mason's rule approach. [20 Marks] [CO1, PO1, C4] R(S) + + C(s) S S S + 1 S S Figure 4
