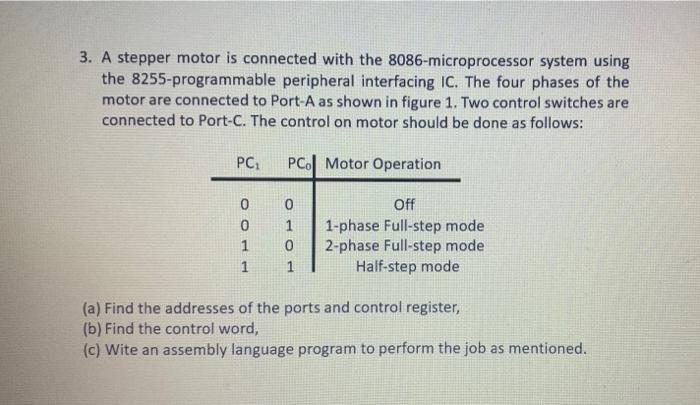

3. A stepper motor is connected with the 8086-microprocessor system using the 8255-programmable peripheral interfacing IC. The four phases of the motor are connected to Port-A as shown in figure 1. Two control switches are connected to Port-C. The control on motor should be done as follows: PC: PC Motor Operation 0 0 1 1 0 1 0 1 Off 1-phase Full-step mode 2-phase Full-step mode Half-step mode (a) Find the addresses of the ports and control register, (b) Find the control word, (c) Wite an assembly language program to perform the job as mentioned.
Voc PA. IORD RD PA, R Am R W R WA R WA Stepper Motor TOWR A2 WR PA Do-D 8255 PPI A. A: Az A. PCO PC CS 5V Ass A34 Ass Au Ao Fig.2: Stepper Motor interfaced with 8255
