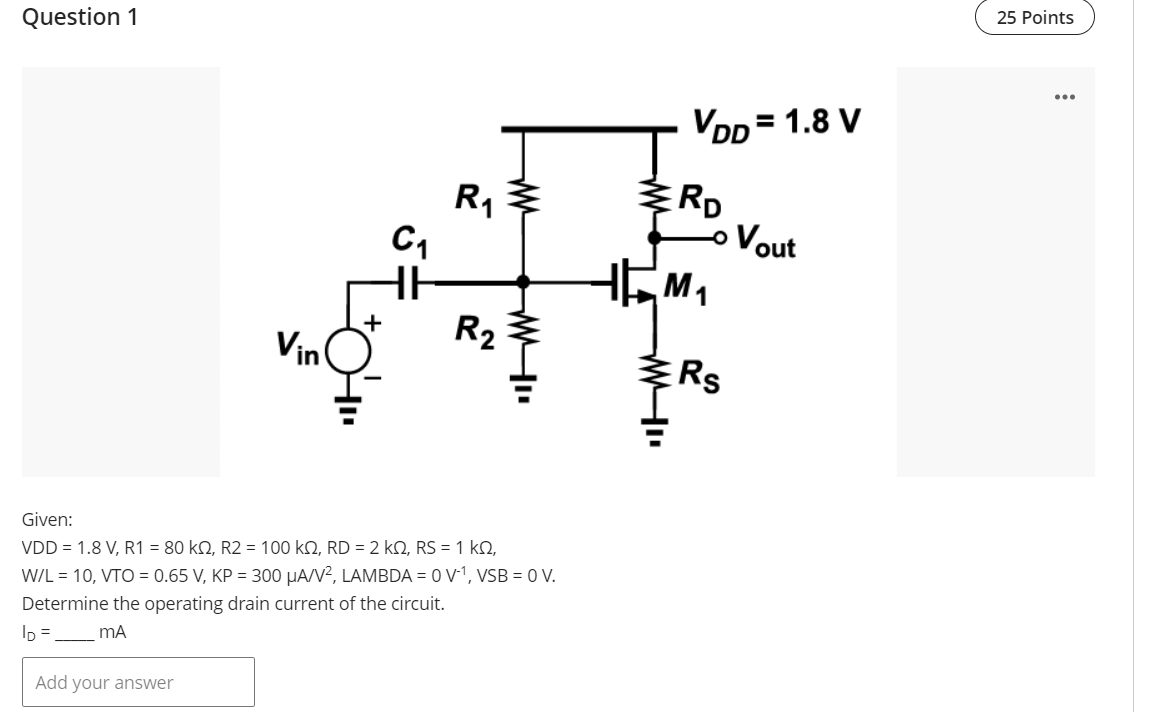

- Question 1 25 Points Vod 1 8 V R1 Rd O Vout C1 Hh M1 Vin 130 Ho W4 Rs Given Vdd 1 8 V R1 80 K 2 R2 100 K2 Rd 1 (98.34 KiB) Viewed 20 times
Question 1 25 Points VoD = 1.8 V R1 RD o Vout C1 HH M1 Vin 130 HO W4 Rs Given: VDD = 1.8 V, R1 = 80 k 2, R2 = 100 k2, RD = 2 k2, RS = 1 k12, W/L = 10, VTO = 0.65 V, KP = 300 UA/V2, LAMBDA = 0 V1, VSB = 0 V. Determine the operating drain current of the circuit. lp = mA Add your answer
Question 2 25 Points continuation... ... Vpp = 1.8 V R1 w RD C1 Vout M1 + Vin R2 RS W! Given: VDD = 1.8 V, R1 = 80 k 2, R2 = 100 k2, RD = 2 k2, RS = 1 k 2, W/L = 10, VTO = 0.65 V, KP = 300 JA/V2, LAMBDA = 0 V-, VSB = 0 V. Determine the magnitude of voltage gain of amplifier. Av 1 = _VN
