(a) For the circuit in Figure Q1(a), determine: i total equivalent resistance in the circuit network ii. current through
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
(a) For the circuit in Figure Q1(a), determine: i total equivalent resistance in the circuit network ii. current through

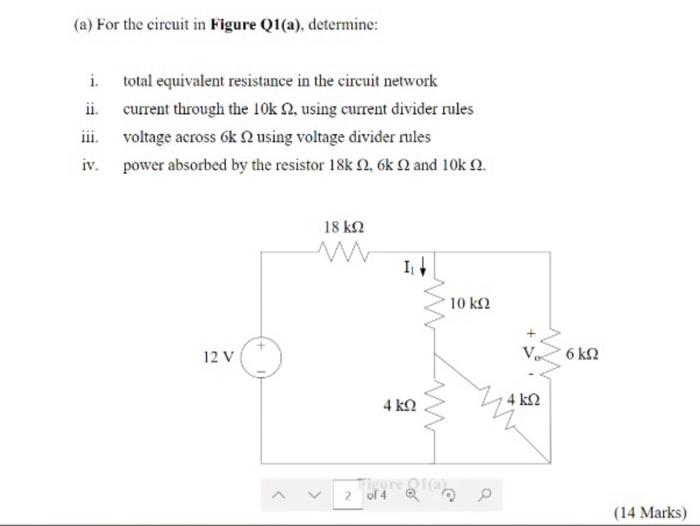

(a) For the circuit in Figure Q1(a), determine: i total equivalent resistance in the circuit network ii. current through the 10k 2, using current divider rules iii. voltage across 6k using voltage divider rules iv. power absorbed by the resistor 18k 22, 6k 12 and 10k 0. 18 k2 1. 10 k2 12 V 6 ΚΩ 4 kΩ 4k2 Toto of 40 2 (14 Marks)
