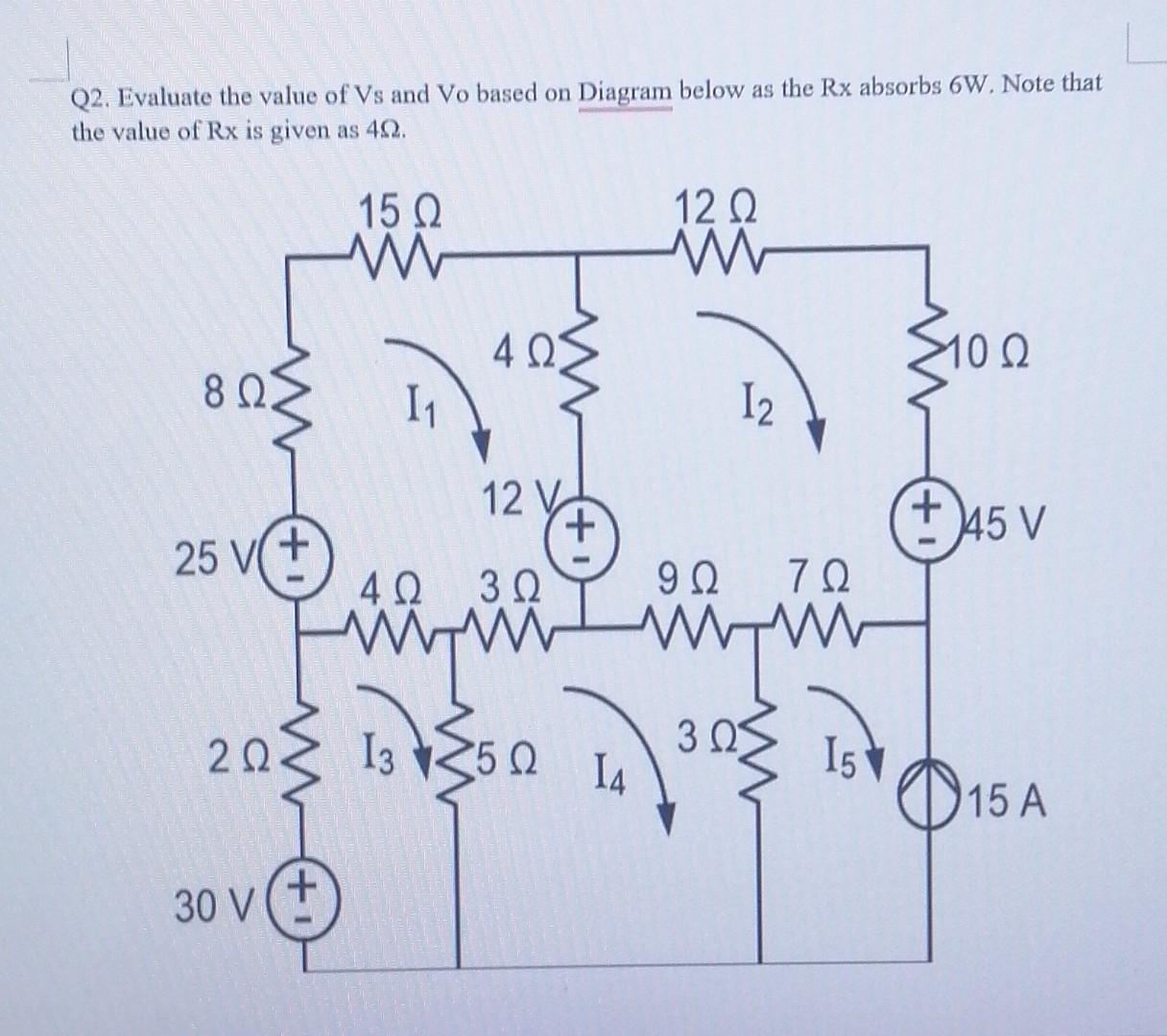

Q2 Evaluate The Value Of Vs And Vo Based On Diagram Below As The Rx Absorbs 6w Note That The Value Of Rx Is Given As 4 1 (120.76 KiB) Viewed 21 times
Evaluate value
Q2. Evaluate the value of Vs and Vo based on Diagram below as the Rx absorbs 6W. Note that the value of Rx is given as 49. 15 0 12 Ω ΑΛΛ 10 Ω 8 ΩΣ 11 I2 12 V 45 V 25 V+ 4Ω 3 Ω 9Ω 7Ω ΑΛΛΗΛ my 20ξ 13 εξ5Ω , με φιος 3 Ω 15 15A 30V +
