Question 10 alculate the resistor values required to give the output shown, with R - 10 kn. Use physically realistic val

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question 10 alculate the resistor values required to give the output shown, with R - 10 kn. Use physically realistic val

Post by answerhappygod »

Question 10 Alculate The Resistor Values Required To Give The Output Shown With R 10 Kn Use Physically Realistic Val 1
Question 10 Alculate The Resistor Values Required To Give The Output Shown With R 10 Kn Use Physically Realistic Val 1 (18.69 KiB) Viewed 19 times

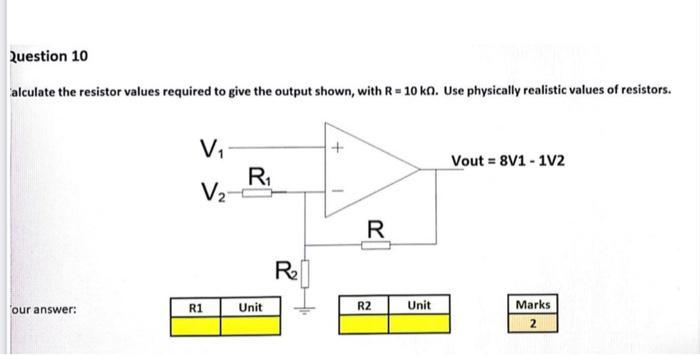

Question 10 alculate the resistor values required to give the output shown, with R - 10 kn. Use physically realistic values of resistors. V + Vout = 8V1 - 1V2 R1 V2 R R R1 Unit R2 'our answer: Unit Marks 2
