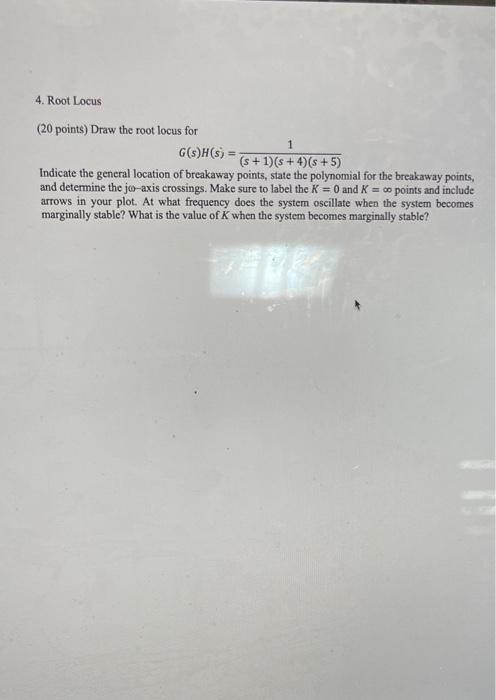

- 4 Root Locus 20 Points Draw The Root Locus For G S H S S 1 8 4 S 5 Indicate The General Location Of Break 1 (23.78 KiB) Viewed 22 times
4. Root Locus (20 points) Draw the root locus for G(s)H(s) = (s + 1)(8 + 4)(s +5) Indicate the general location of break
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
4. Root Locus (20 points) Draw the root locus for G(s)H(s) = (s + 1)(8 + 4)(s +5) Indicate the general location of break
4. Root Locus (20 points) Draw the root locus for G(s)H(s) = (s + 1)(8 + 4)(s +5) Indicate the general location of breakaway points, state the polynomial for the breakaway points, and determine the jo-axis crossings. Make sure to label the K = 0 and K = co points and include arrows in your plot. At what frequency does the system oscillate when the system becomes marginally stable? What is the value of K when the system becomes marginally stable?
