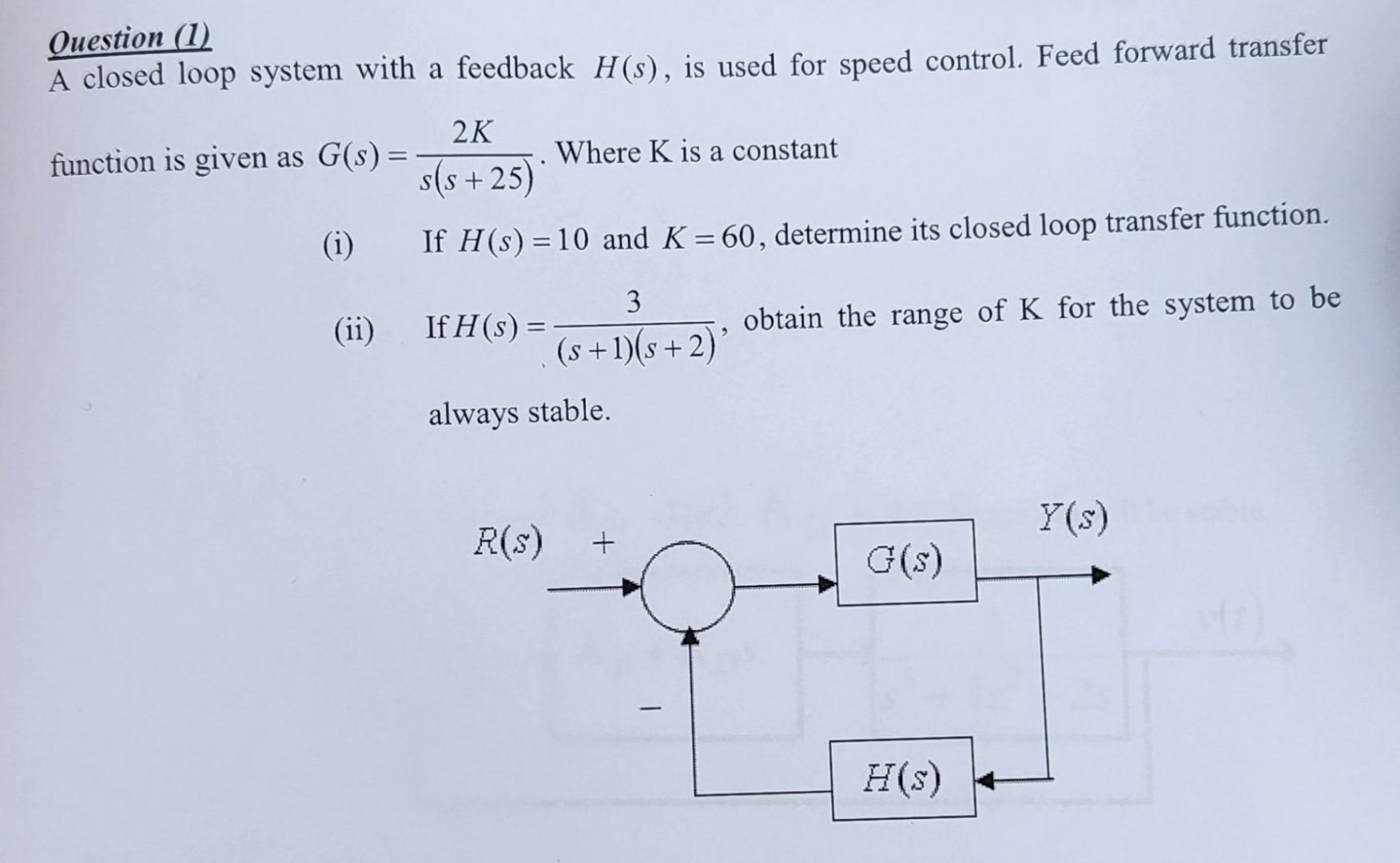

Question (1) A closed loop system with a feedback H(s), is used for speed control. Feed forward transfer 2K function is

[answerhappygod]

Question 1 A Closed Loop System With A Feedback H S Is Used For Speed Control Feed Forward Transfer 2k Function Is 1 (103.31 KiB) Viewed 16 times

Question (1) A closed loop system with a feedback H(s), is used for speed control. Feed forward transfer 2K function is given as G(s) = Where K is a constant s(s+25) (i) If H(s) = 10 and K = 60, determine its closed loop transfer function. (ii) obtain the range of K for the system to be 3 If H(S) = (s +1)(s+2) always stable. Y(S) R(S) + G(s) H(s)
