4.3 Conversion of a D-type flip-flop to a T-type flip-flop Design and simulate a toggling flip-flop using a D-type flip-

Post by answerhappygod »

4 3 Conversion Of A D Type Flip Flop To A T Type Flip Flop Design And Simulate A Toggling Flip Flop Using A D Type Flip 1
4 3 Conversion Of A D Type Flip Flop To A T Type Flip Flop Design And Simulate A Toggling Flip Flop Using A D Type Flip 1 (33.56 KiB) Viewed 18 times

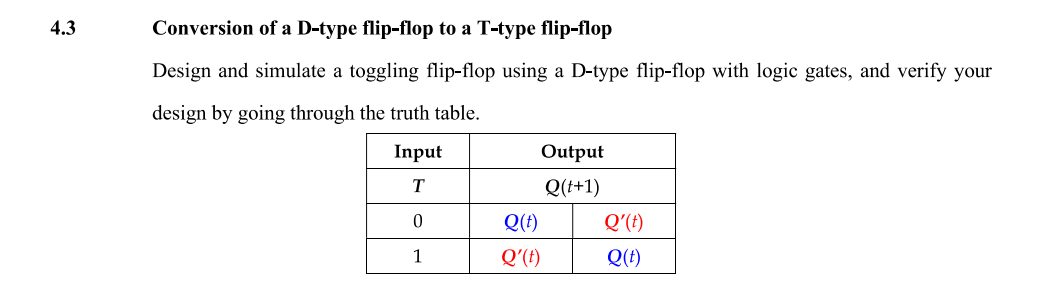

4.3 Conversion of a D-type flip-flop to a T-type flip-flop Design and simulate a toggling flip-flop using a D-type flip-flop with logic gates, and verify your design by going through the truth table. Input Output T Q(t+1) 0 Q(t) Q'(t) 1 Q(t) Q'(t)
