Question 1 (20 marks) For the circuit shown in the following figure, with e(t) as the input voltage and i(t) as the outp

[answerhappygod]

Question 1 20 Marks For The Circuit Shown In The Following Figure With E T As The Input Voltage And I T As The Outp 1 (96.44 KiB) Viewed 24 times

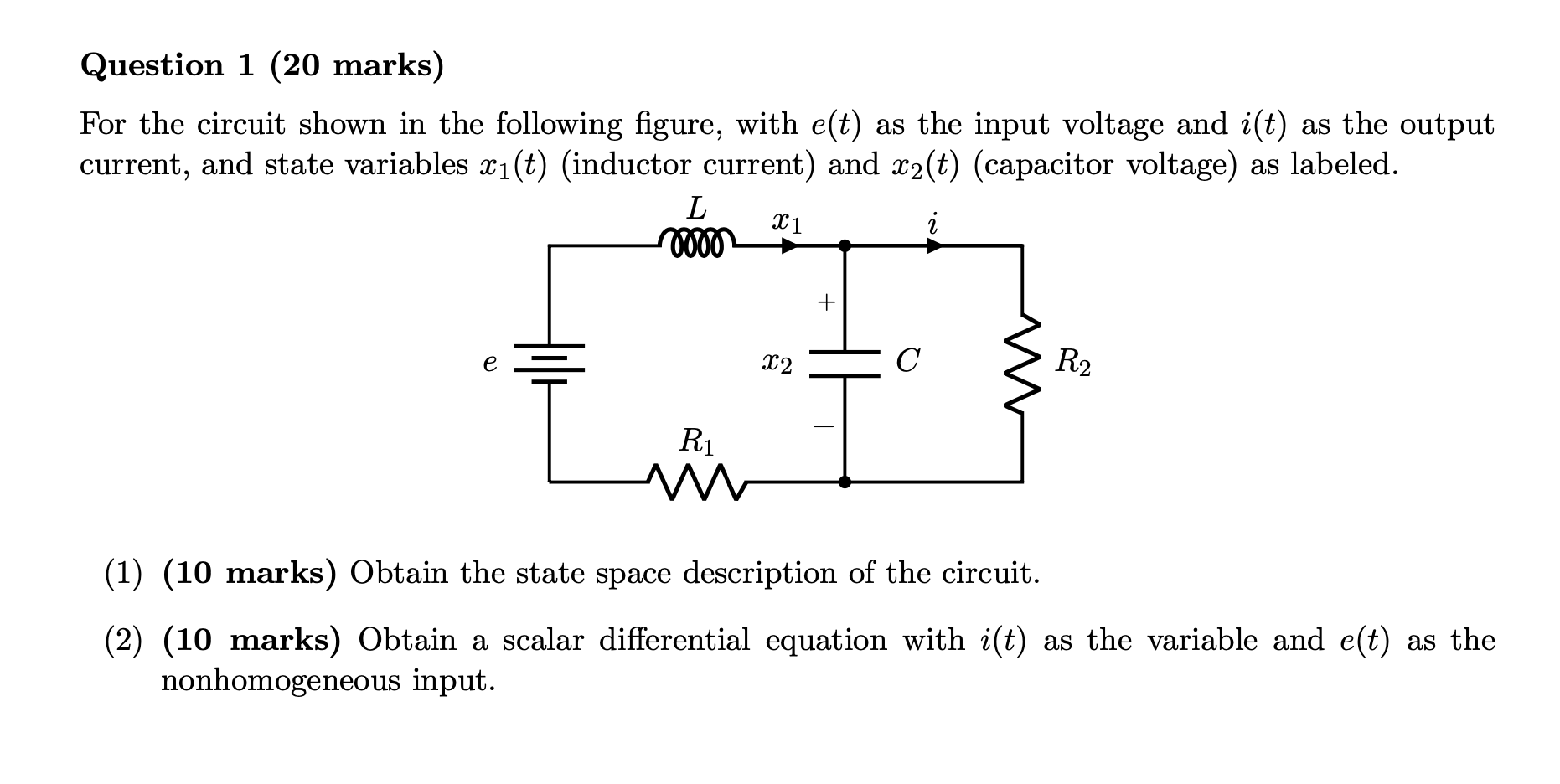

Question 1 (20 marks) For the circuit shown in the following figure, with e(t) as the input voltage and i(t) as the output current, and state variables xi(t) inductor current) and 22(t) (capacitor voltage) as labeled. ci(x2 L i 10000 X1 + e 27 X2 С R2 R M (1) (10 marks) Obtain the state space description of the circuit. (2) (10 marks) Obtain a scalar differential equation with i(t) as the variable and e(t) as the nonhomogeneous input.
