RI R3 Differential amp Gain AvD R2 R4 This strain gauge bridge provides an out-of-balance voltage Vo = 150 pV The amplif

Post by answerhappygod »

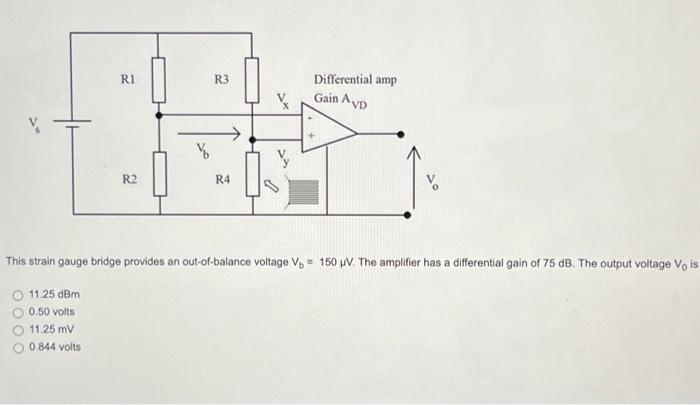

Ri R3 Differential Amp Gain Avd R2 R4 This Strain Gauge Bridge Provides An Out Of Balance Voltage Vo 150 Pv The Amplif 1
Ri R3 Differential Amp Gain Avd R2 R4 This Strain Gauge Bridge Provides An Out Of Balance Voltage Vo 150 Pv The Amplif 1 (21.88 KiB) Viewed 20 times
RI R3 Differential amp Gain AvD R2 R4 This strain gauge bridge provides an out-of-balance voltage Vo = 150 pV The amplifier has a differential gain of 75 dB. The output voltage Vo is 11.25 dBm 0.50 volts 11.25 mV 0.844 volts
