(1) (25%) Design of MOS Capacitor Consider an nt polysilicon gate and a p-type silicon substrate with a doping concentra

Post by answerhappygod »

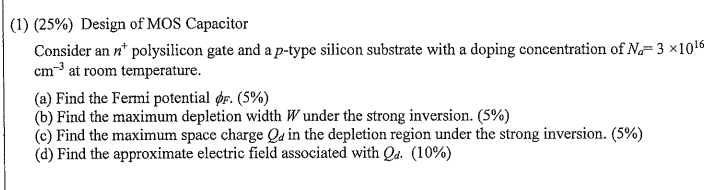

1 25 Design Of Mos Capacitor Consider An Nt Polysilicon Gate And A P Type Silicon Substrate With A Doping Concentra 1
1 25 Design Of Mos Capacitor Consider An Nt Polysilicon Gate And A P Type Silicon Substrate With A Doping Concentra 1 (37.12 KiB) Viewed 35 times
(1) (25%) Design of MOS Capacitor Consider an nt polysilicon gate and a p-type silicon substrate with a doping concentration of N=3 x1016 cm- at room temperature. (a) Find the Fermi potential @F. (5%) (b) Find the maximum depletion width W under the strong inversion. (5%) (c) Find the maximum space charge Qd in the depletion region under the strong inversion. (5%) (d) Find the approximate electric field associated with Qd. (10%)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
