For the circuit shown in the following figure, with e(t) as the input voltage and i(t) as the output current, and state

Post by answerhappygod »

For The Circuit Shown In The Following Figure With E T As The Input Voltage And I T As The Output Current And State 1
For The Circuit Shown In The Following Figure With E T As The Input Voltage And I T As The Output Current And State 1 (29 KiB) Viewed 33 times

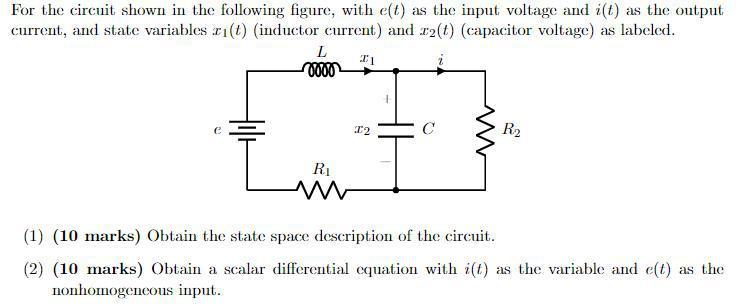

For the circuit shown in the following figure, with e(t) as the input voltage and i(t) as the output current, and state variables ri(t) (inductor current) and 32() (capacitor voltage) as labeled. L 11 0000 T2 с R2 RI W (1) (10 marks) Obtain the state space description of the circuit. (2) (10 marks) Obtain a scalar differential equation with it) as the variable and c(t) as the nonhomogeneous input.
