Referring to the register transfer system below, determine the transfer operation, which will happen if the control comb

Post by answerhappygod »

Referring to the register transfer system below, determine the
transfer operation, which will happen if the control combination is
C2C1 = 01.
Referring To The Register Transfer System Below Determine The Transfer Operation Which Will Happen If The Control Comb 1
Referring To The Register Transfer System Below Determine The Transfer Operation Which Will Happen If The Control Comb 1 (150.13 KiB) Viewed 22 times

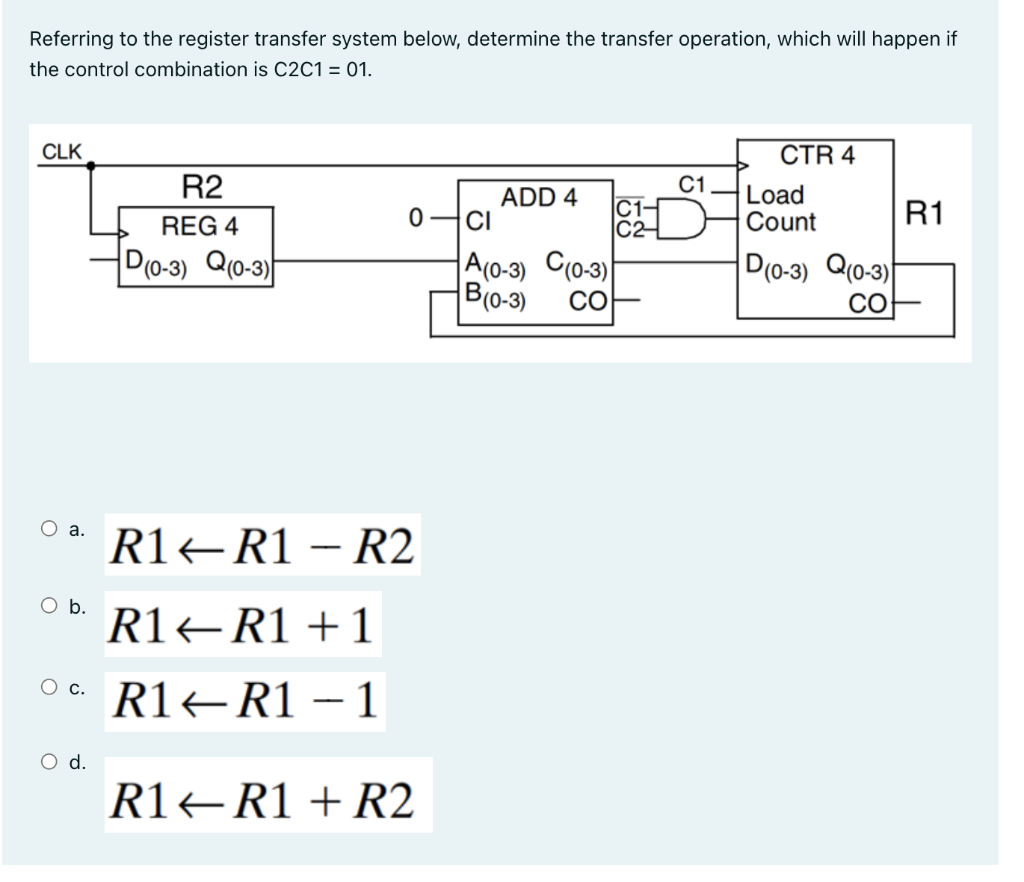

Referring to the register transfer system below, determine the transfer operation, which will happen if the control combination is C2C1 = 01. CLK CTR 4 C1 R2 REG 4 P(0-3) Q(0-3) 0 R1 ADD 4 C1 CI A(0-3) C(0-3) B(0-3) CO Load Count D(0-3) Q(0-3) СО O a. R14 R1 – R2 Ob. R14 R1 +1 R14 R1 - 1 O c. O d. R14 R1 + R2
