Write down the matlab code for above problem of LFA sensitive matrix.

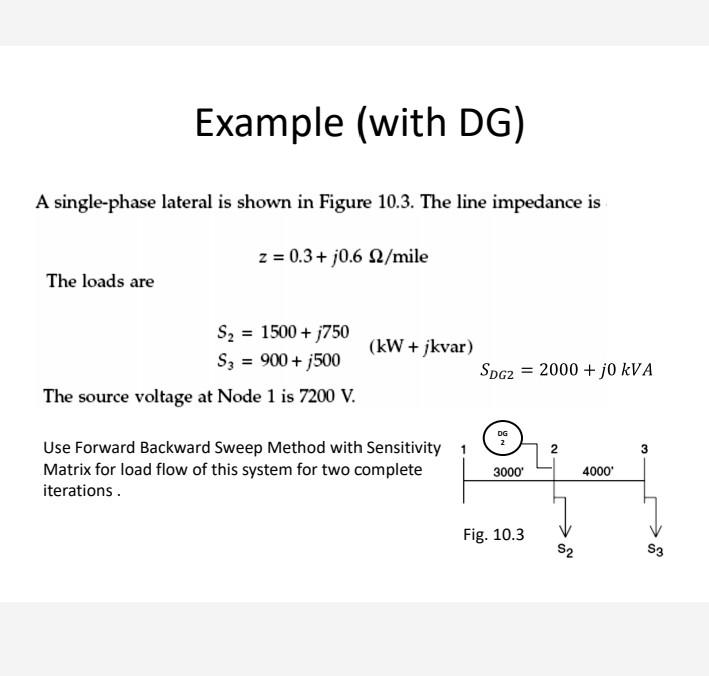

Example (with DG) A single-phase lateral is shown in Figure 10.3. The line impedance is z = 0.3+ 0.6 N/mile The loads are S2 = 1500 + j750 Sz = 900 + 3500 The source voltage at Node 1 is 7200 V. (kW + jkvar) SpG2 = 2000+ 0 kVA 3 Use Forward Backward Sweep Method with Sensitivity 1 Matrix for load flow of this system for two complete iterations 3000 4000 Fig. 10.3 S2 S3
