R(S) C($) G.S) 10 s(s+1) Plant Lead compensator 1. Consider the above closed loop system. (20 pts) 1a. Find , and 5 16.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

R(S) C($) G.S) 10 s(s+1) Plant Lead compensator 1. Consider the above closed loop system. (20 pts) 1a. Find , and 5 16.

Post by answerhappygod »

R S C G S 10 S S 1 Plant Lead Compensator 1 Consider The Above Closed Loop System 20 Pts 1a Find And 5 16 1
R S C G S 10 S S 1 Plant Lead Compensator 1 Consider The Above Closed Loop System 20 Pts 1a Find And 5 16 1 (25.23 KiB) Viewed 27 times

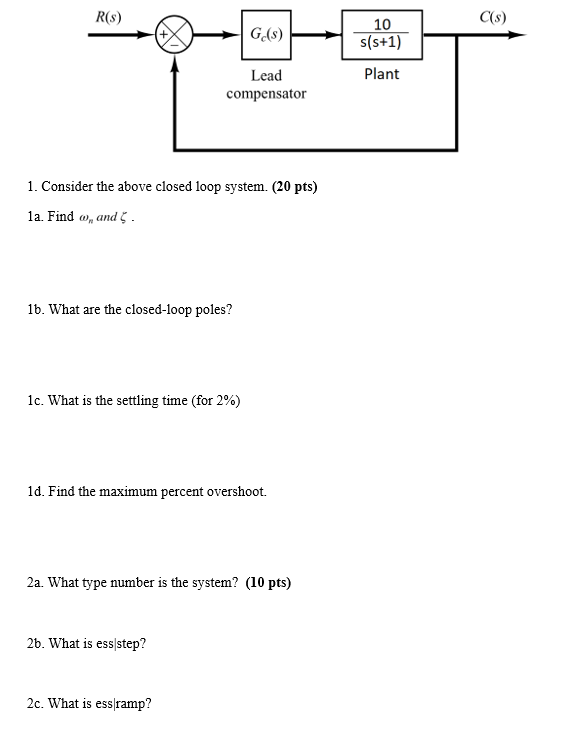

R(S) C($) G.S) 10 s(s+1) Plant Lead compensator 1. Consider the above closed loop system. (20 pts) 1a. Find , and 5 16. What are the closed-loop poles? 1c. What is the settling time (for 2%) 1d. Find the maximum percent overshoot. 2a. What type number is the system? (10 pts) 26. What is essstep? 2c. What is essramp?
3. Determine corresponding open-loop transfer function, G(s), assuming the feedback is unity. (10 pts) 4. Sketch the uncompensated root-locus. (10 pts)
