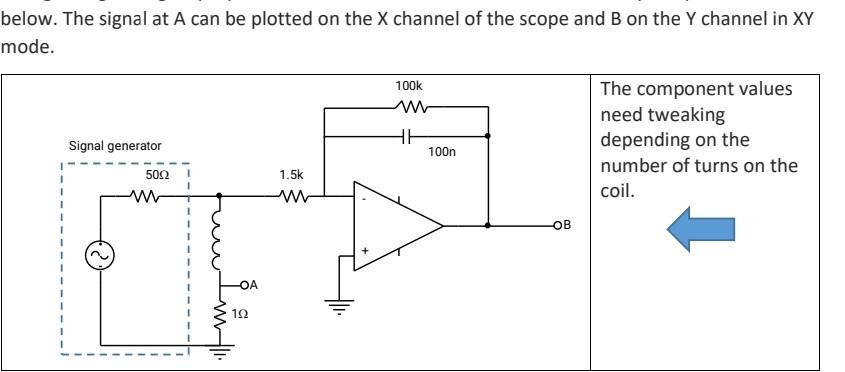

Below The Signal At A Can Be Plotted On The X Channel Of The Scope And B On The Y Channel In Xy Mode 100k Hh Signal Ge 1 (34.46 KiB) Viewed 20 times
I am building this BH curve tracer. I a toroid core of permeability 7500.
Please explain how this circuit works (the toroid (inductor) , the capacitor and resistors) and how my number of turns influences the circuit. To saturate the core I need around 70-10 turns. At 1KHZ
below. The signal at A can be plotted on the X channel of the scope and B on the Y channel in XY mode. 100k HH Signal generator The component values need tweaking depending on the number of turns on the coil. 100n 50Ω 1.5k 1 w OB OA 192 - -
