The resistors in the operational amplifier circuit shown Figure 1.1 are R1 = 2 k22, R2 = 2 k22, R3 = 9 k2, and R4 = 18 k

[answerhappygod]

The Resistors In The Operational Amplifier Circuit Shown Figure 1 1 Are R1 2 K22 R2 2 K22 R3 9 K2 And R4 18 K 1 (36.73 KiB) Viewed 22 times

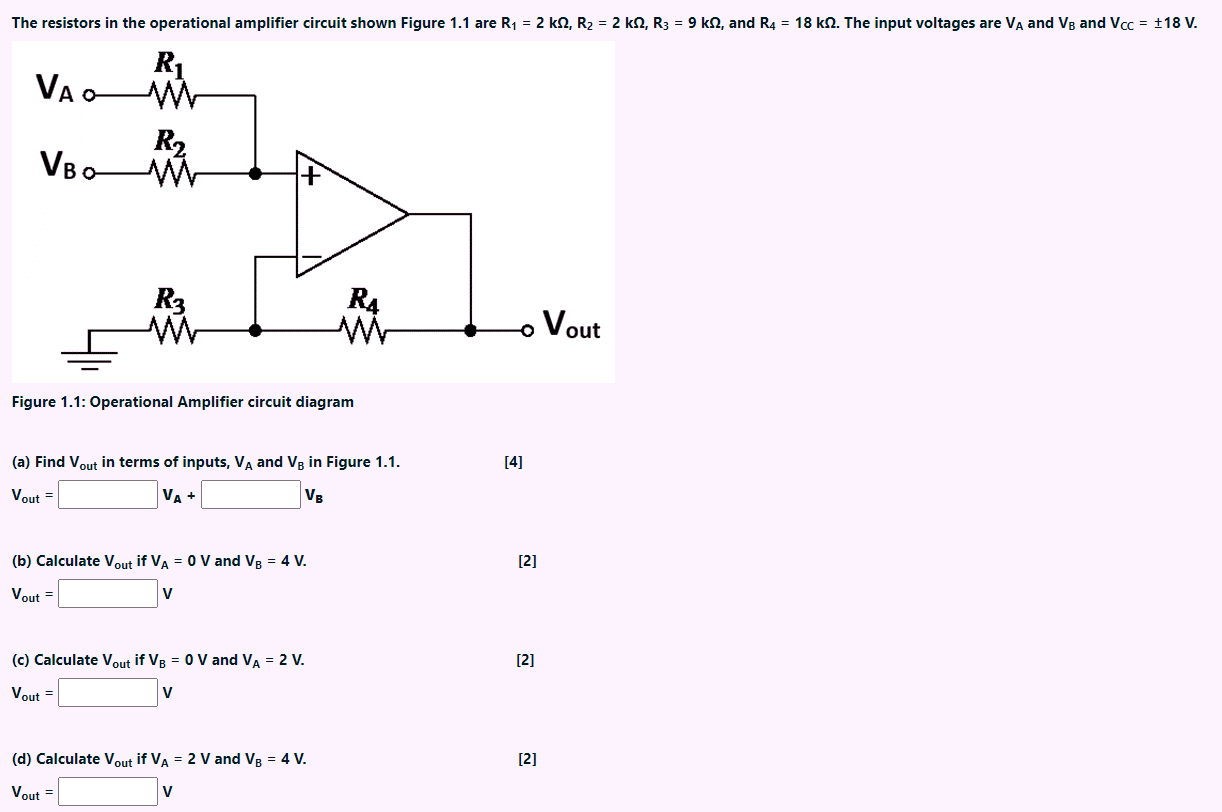

The resistors in the operational amplifier circuit shown Figure 1.1 are R1 = 2 k22, R2 = 2 k22, R3 = 9 k2, and R4 = 18 k 2. The input voltages are VA and Vg and Vcc = +18 V. R1 VAM R2 VBO R3 R4 O Vout Figure 1.1: Operational Amplifier circuit diagram Find Vout in rms of inputs, and Vg in Figure 1.1. Vout = VA + VE (b) Calculate Vout if VA = 0 V and Vg = 4 V. [2] Vout = V (c) Calculate Vout if V8 = 0 V and VA = 2 V. [2] Vout V (d) Calculate Vout if VA = 2 V and Vg = 4 V. [2] Vout = v
