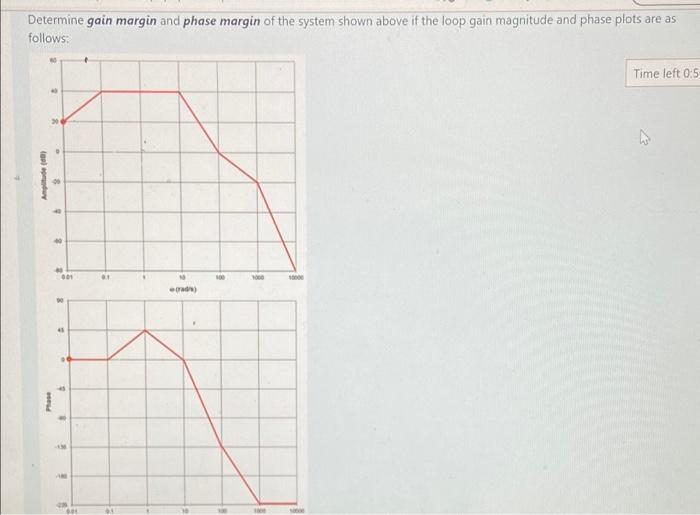

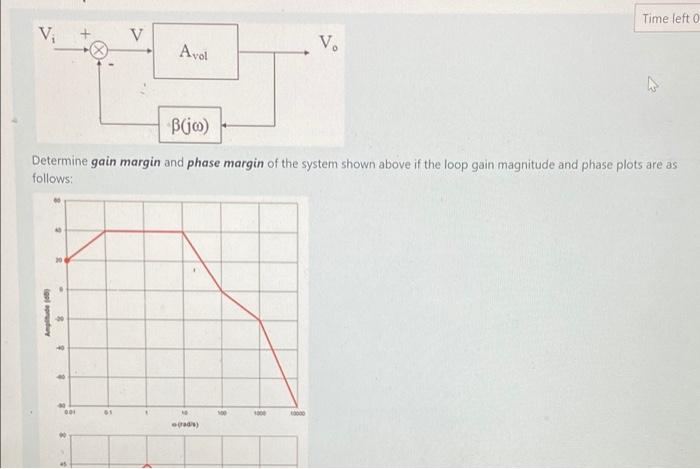

Determine gain margin and phase margin of the system shown above if the loop gain magnitude and phase plots are as follows: Time left 0:5 Gold

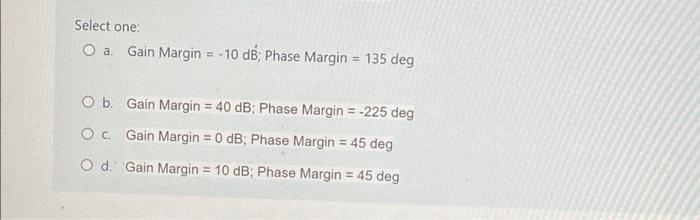

Select one: O a. Gain Margin = -10 dB; Phase Margin = 135 deg O b. Gain Margin = 40 dB; Phase Margin = -225 deg Oc Gain Margin = 0 dB; Phase Margin = 45 deg Od Gain Margin = 10 dB; Phase Margin = 45 deg
