The AC response of an amplifier can be represented using the model below. Calculate the rms output voltage V3 to 2 decim

Post by answerhappygod »

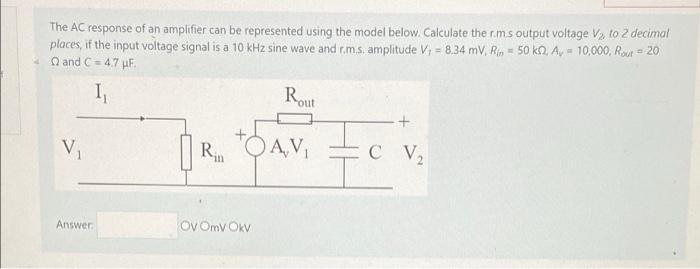

The Ac Response Of An Amplifier Can Be Represented Using The Model Below Calculate The Rms Output Voltage V3 To 2 Decim 1
The Ac Response Of An Amplifier Can Be Represented Using The Model Below Calculate The Rms Output Voltage V3 To 2 Decim 1 (19.17 KiB) Viewed 23 times
The AC response of an amplifier can be represented using the model below. Calculate the rms output voltage V3 to 2 decimal places, if the input voltage signal is a 10 kHz sine wave and cms amplitude V; = 8.34 mv, Ro50 kOAy - 10,000, Rour = 20 and C = 47uF I, + Rout V IR. TOAV = .C V₂ in Answer OV Omy OKV
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
