A 50 Hz, pad-mount three-phase transformer for an off-shore wind turbine must be designed to handle 7.2 MVA and have a b

Post by answerhappygod »

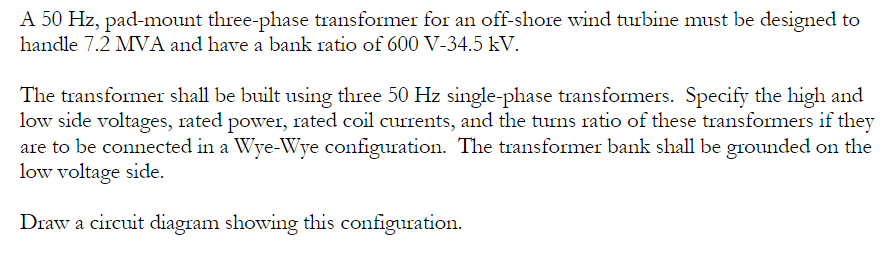

A 50 Hz Pad Mount Three Phase Transformer For An Off Shore Wind Turbine Must Be Designed To Handle 7 2 Mva And Have A B 1
A 50 Hz Pad Mount Three Phase Transformer For An Off Shore Wind Turbine Must Be Designed To Handle 7 2 Mva And Have A B 1 (39.9 KiB) Viewed 25 times
A 50 Hz, pad-mount three-phase transformer for an off-shore wind turbine must be designed to handle 7.2 MVA and have a bank ratio of 600 V-34.5 kV. The transformer shall be built using three 50 Hz single-phase transformers. Specify the high and low side voltages, rated power, rated coil currents, and the turns ratio of these transformers if they are to be connected in a Wye-Wye configuration. The transformer bank shall be grounded on the low voltage side. Draw a circuit diagram showing this configuration.
