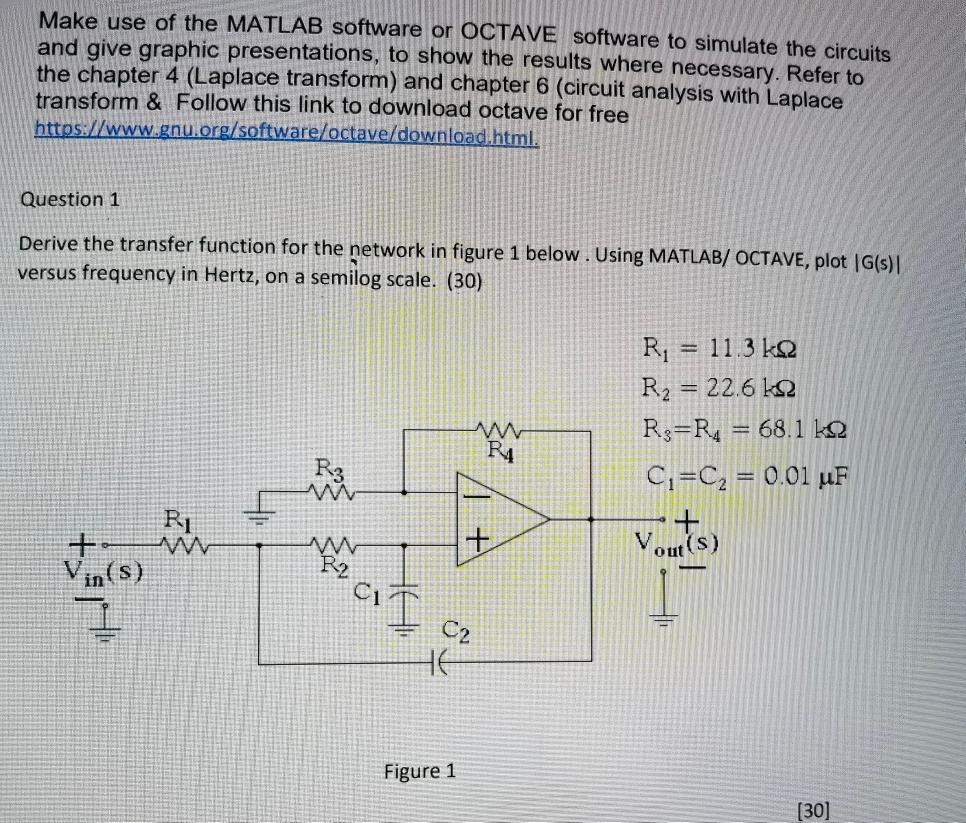

Make use of the MATLAB software or OCTAVE software to simulate the circuits and give graphic presentations, to show the results where necessary. Refer to the chapter 4 (Laplace transform) and chapter 6 (circuit analysis with Laplace transform & Follow this link to download octave for free https://www.gnu.org/software/octave/download.html. Question 1 Derive the transfer function for the network in figure 1 below. Using MATLAB/ OCTAVE, plot |G(s)! versus frequency in Hertz, on a semilog scale. (30) WW Ry Ry = 11.3 k22 R2 = 22.6 k2 R3=R4 = 68.1 112 Ci=C2 = 0.01 uF す。 R3 w RI W Vout(s) in(s) a. I HE 7 | C2 HE Figure 1 [30]
