1.3. For the half-wave uncontrolled rectifier circuit supplying a series resistive-inductive load. The supply voltage is

Post by answerhappygod »

1 3 For The Half Wave Uncontrolled Rectifier Circuit Supplying A Series Resistive Inductive Load The Supply Voltage Is 1
1 3 For The Half Wave Uncontrolled Rectifier Circuit Supplying A Series Resistive Inductive Load The Supply Voltage Is 1 (29.3 KiB) Viewed 23 times
Please help

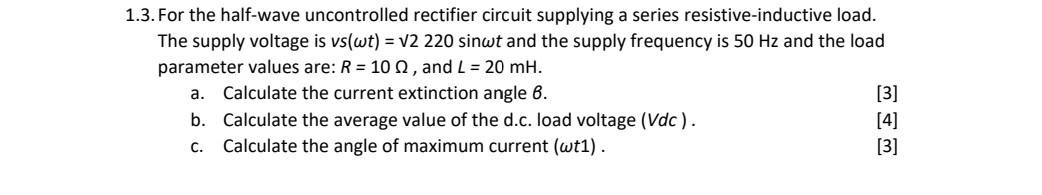

1.3. For the half-wave uncontrolled rectifier circuit supplying a series resistive-inductive load. The supply voltage is vs(wt) = V2 220 sinwt and the supply frequency is 50 Hz and the load parameter values are: R = 1022, and L = 20 mH. Calculate the current extinction angle 6. [3] b. Calculate the average value of the d.c. load voltage (Vdc). [4] Calculate the angle of maximum current (wt1). [3] a. C.
