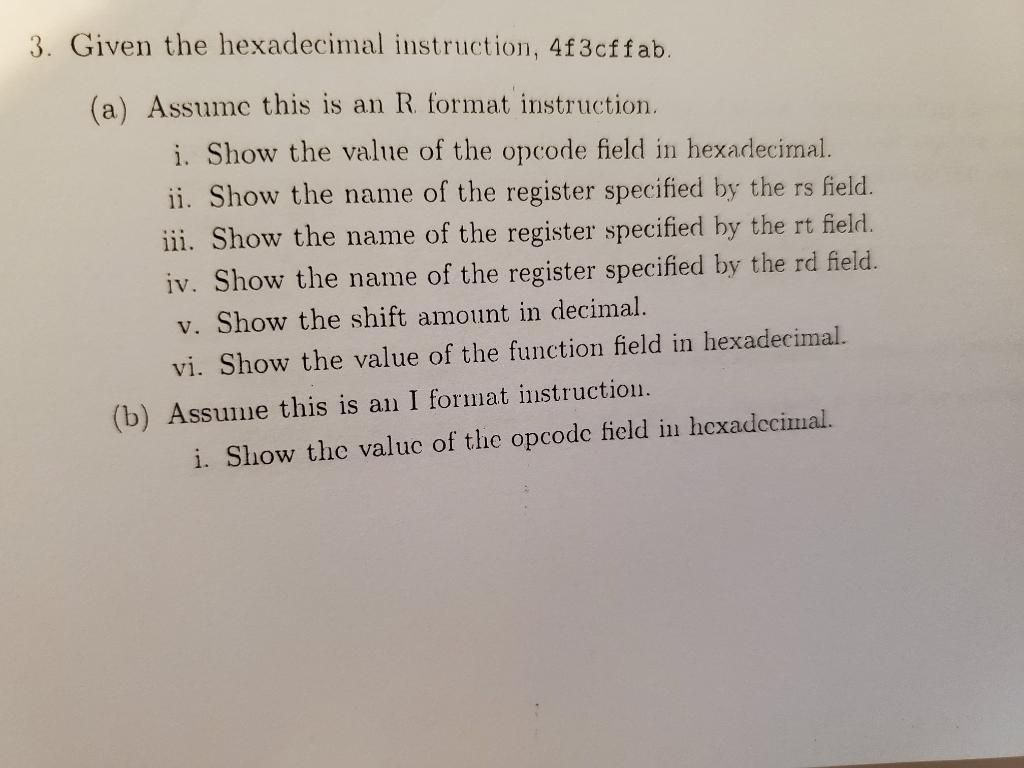

3. Given the hexadecimal instruction, 4f3cffab. (a) Assume this is an R format instruction. i. Show the value of the opcode field in hexadecimal. ii. Show the name of the register specified by the rs field. ii. Show the name of the register specified by the rt field. iv. Show the name of the register specified by the rd field. v. Show the shift amount in decimal. vi. Show the value of the function field in hexadecimal. (b) Assume this is an I format instruction. i. Show the valuc of the opcode field in hexadecimal.

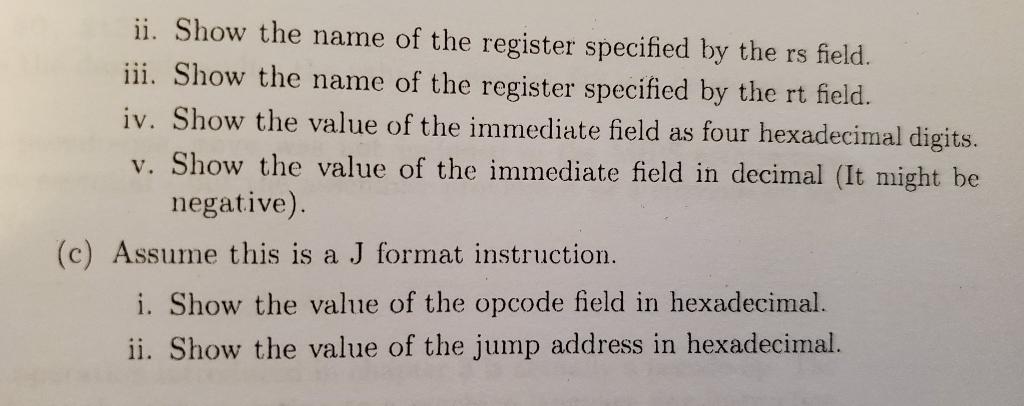

ii. Show the name of the register specified by the rs field. iii. Show the name of the register specified by the rt field. iv. Show the value of the immediate field as four hexadecimal digits. v. Show the value of the immediate field in decimal (It might be negative). (c) Assume this is a J format instruction. i. Show the value of the opcode field in hexadecimal. ii. Show the value of the jump address in hexadecimal.
