Internal Forces in Beams Draw shear & bending moment diagrams for the shown beams.
10 KN 2 kN/m 1 B 5 m 3 m 2 m (c)

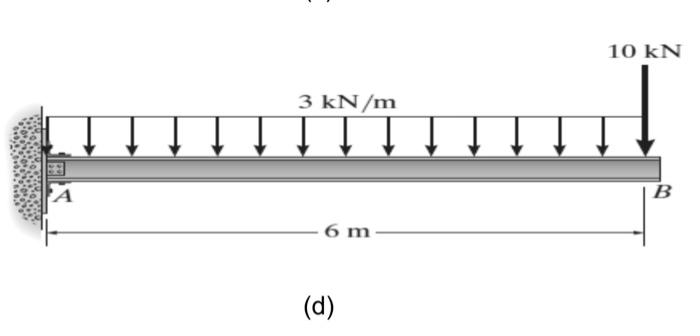

10 KN 3 kN/m A B 6 m (d)
