7) In the portion of a circuit shown, if the heat generated in the 5 resistance is 15 calories per second, then the heat

[answerhappygod]

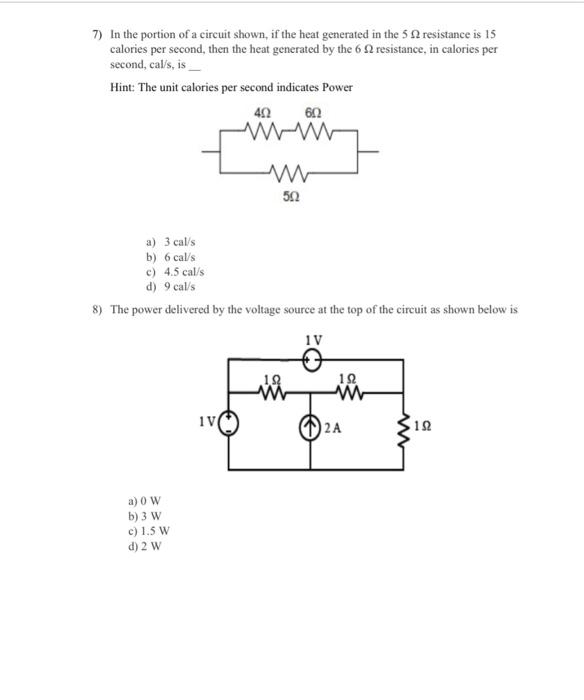

7 In The Portion Of A Circuit Shown If The Heat Generated In The 5 Resistance Is 15 Calories Per Second Then The Heat 1 (23.35 KiB) Viewed 24 times

7) In the portion of a circuit shown, if the heat generated in the 5 resistance is 15 calories per second, then the heat generated by the 6 resistance, in calories per second, cals, is _ Hint: The unit calories per second indicates Power 602 WW 422 WW 502 a) 3 calls b) 6 calls c) 4.5 calls d) 9 cal's 8) The power delivered by the voltage source at the top of the circuit as shown below is 1V 12. wi M 1V 2A 122 a) 0 W b)3 W c) 1.5 W d) 2 w
