m 2. Consider the system of two degrees of freedom shown: g. Write down the equations of motion of the system. h. evalua

[answerhappygod]

M 2 Consider The System Of Two Degrees Of Freedom Shown G Write Down The Equations Of Motion Of The System H Evalua 1 (36.57 KiB) Viewed 41 times

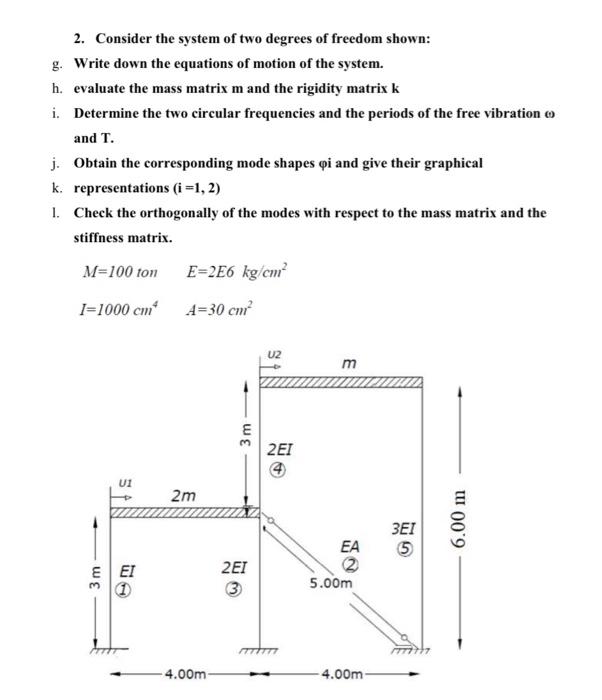

m 2. Consider the system of two degrees of freedom shown: g. Write down the equations of motion of the system. h. evaluate the mass matrix m and the rigidity matrix k i. Determine the two circular frequencies and the periods of the free vibration o and T. j. Obtain the corresponding mode shapes qi and give their graphical k. representations (i=1, 2) 1. Check the orthogonally of the modes with respect to the mass matrix and the stiffness matrix. M=100 ton E=2E6 kg/cm 1=1000 cm A=30 cm m 3 m 2 EI U1 2m ЗЕІ 6.00 m EA 2ΕΙ ε| EI m 1 5.00m 4.00m 4.00m
